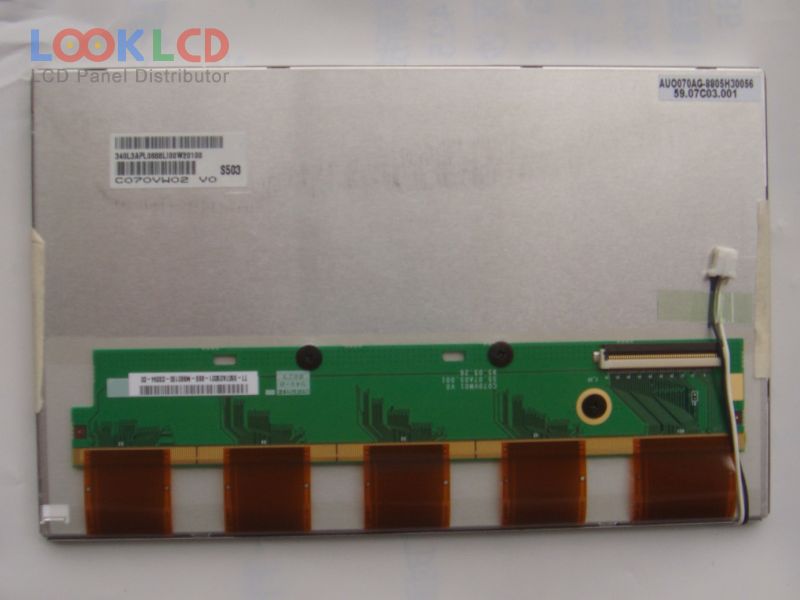

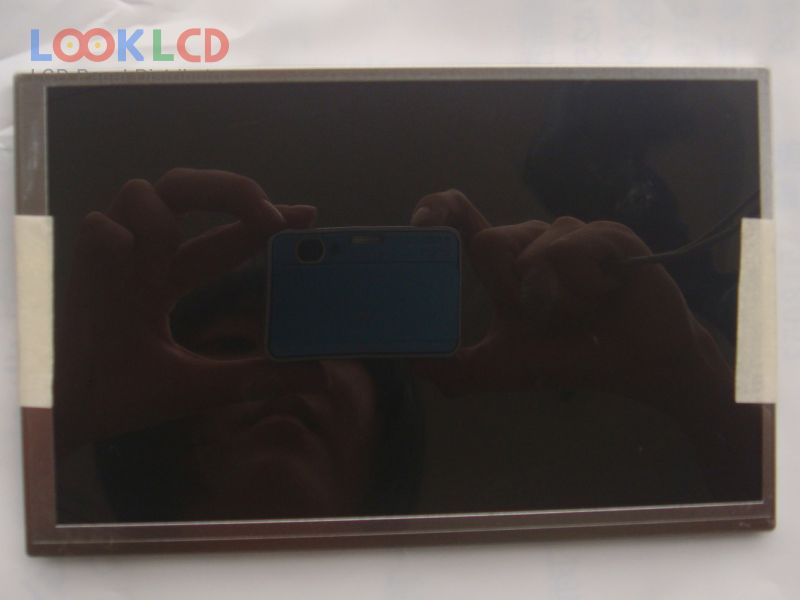

| PartZenbakia | C070VW02 V0 |
| Marka | AUO |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AUO |
| panel eredua | C070VW02 V0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 165×104×9.45 mm |
| azalera | Antiglare (Haze 5%) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 6/10 (Typ.)(Tr/Td) |
| ikuspegi angelua | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 50 pins |
| sarrerako tentsioa | 3.3/9.8/15/-7/4.2V (Typ.)(VCC/AVDD/VGH/VGL/VCOM) |
| aplikazio | CNS |
| C070VAN01.1 | AUO | 7.0 | 800×480 |
| C070VAN01.3 | AUO | 7.0 | 800×480 |
| C070VTN01.0 | AUO | 7.0 | 800×480 |
| C070VTN02.0 | AUO | 7.0 | 800×480 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| C070VW02 V0 | AUO | 7.0 | 800×480 |
| C070VW04 V2 | AUO | 7.0 | 800×480 |
| C070VW04 V6 | AUO | 7.0 | 800×480 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| AT102TN03 V.8 | Innolux | 10.2 | 800×480 |
| AV080WSM-NW3 | BOE | 8.0 | 1024×600 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| C070VW04 V5 | AUO | 7.0 | 800×480 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| LQ065T9BR54U | SHARP | 6.5 | 400×240 |
| PM070WX5 | E Ink | 7.0 | 800×480 |
