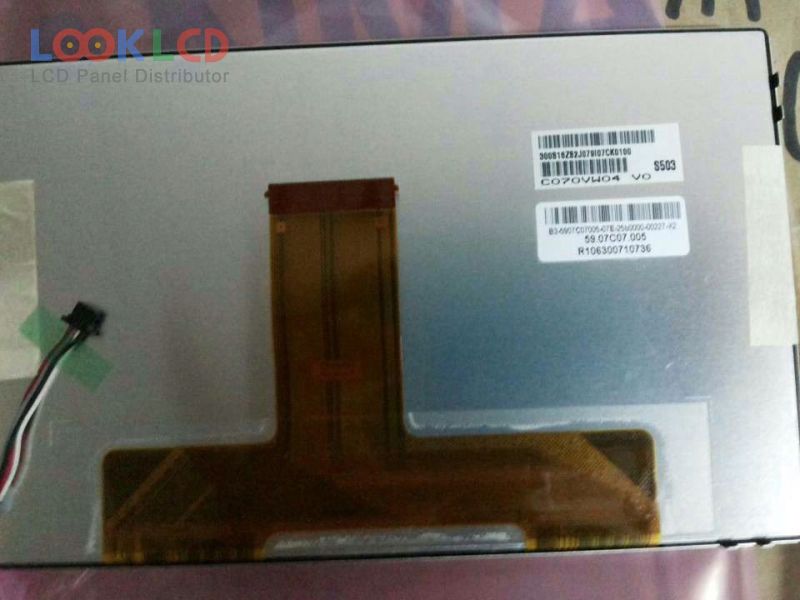

| PartZenbakia | C070VW04 V0 |
| Marka | AUO |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 650 |
| CR | 2000:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AUO |
| panel eredua | C070VW04 V0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | AMVA, Normally Black, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 164.55×105.1×8.78 mm |
| azalera | Antiglare |
| distira | 650 cd/m² (Typ.) |
| kontraste-erlazioa | 2000:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193155% |
| erantzun denbora | 10/20 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 6S3PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 50 pins |
| sarrerako tentsioa | 3.2/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikazio | CNS |
