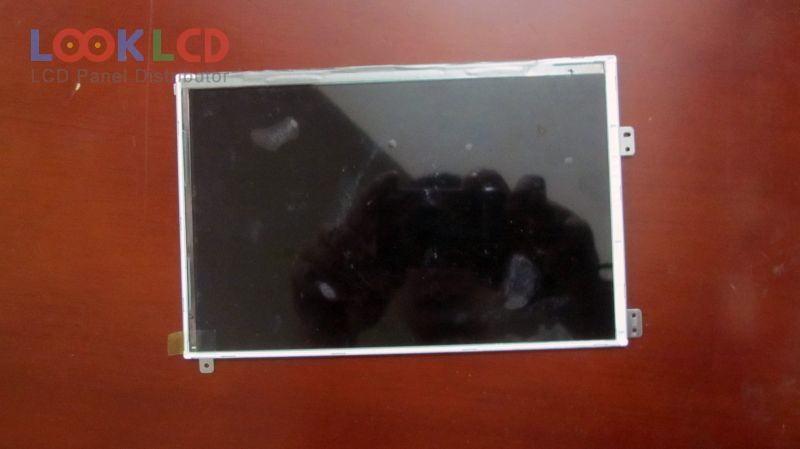

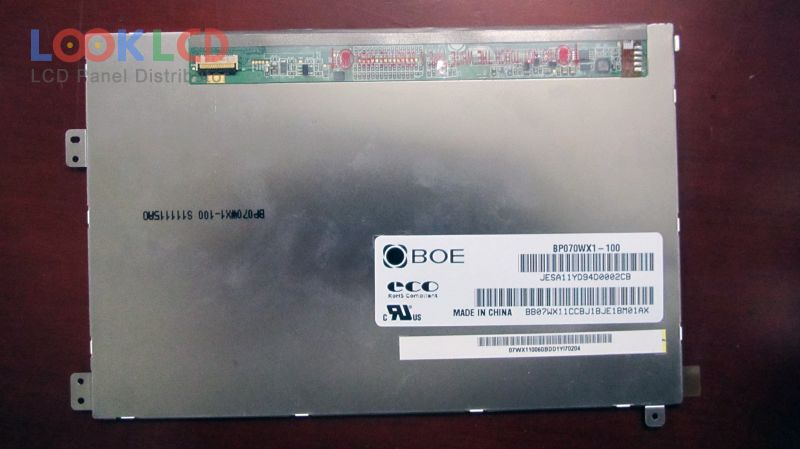

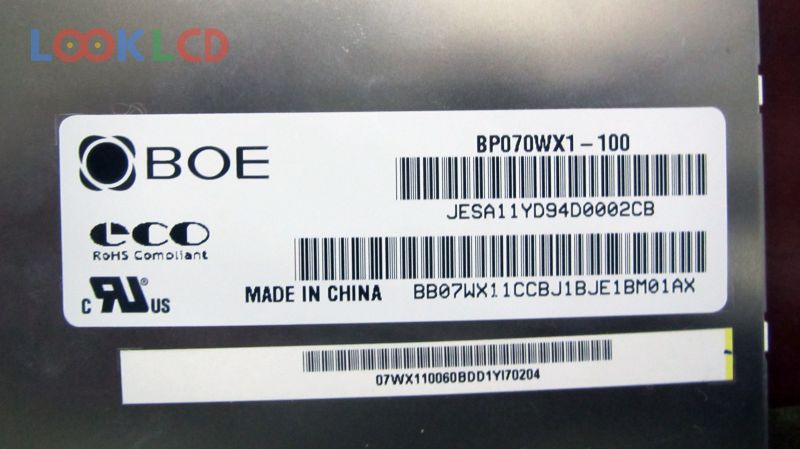

| PartZenbakia | BP070WX1-100 |
| Marka | BOE |
| Tamaina | 7.0 |
| Aplikazio | UMPC |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | BOE |
| panel eredua | BP070WX1-100 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | AFFS, Normally Black, Transmissive |
| eremu aktiboa | 150.72×94.2 mm |
| eskema | 161×107×4.4 mm |
| azalera | Hard coating (3H), Antireflection |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC) |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 5S4PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 8-bit), 39 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | UMPC |
