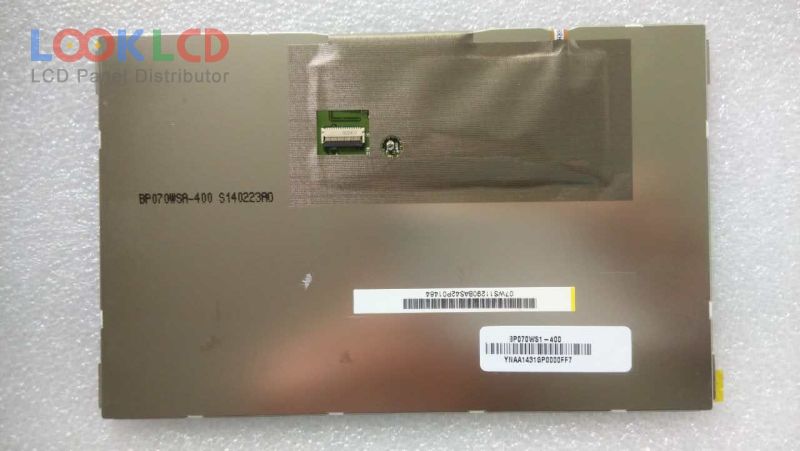

| PartZenbakia | BP070WS1-400 |
| Marka | BOE |
| Tamaina | 7.0 |
| Aplikazio | PAD |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 900:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| panel marka | BOE |
| panel eredua | BP070WS1-400 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | ADS, Normally Black, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 162.8×102.9×4.2 mm |
| azalera | Glare (Haze 0%), Hard coating (3H) |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193152% |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 5S4PWLEDEmbedded (LED Driver) |
| seinale interfazea | MIPI (4 data lanes), 31 pins |
| sarrerako tentsioa | 3.7V (Typ.) |
| aplikazio | PAD |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| BP070WS1-200 | BOE | 7.0 | 1024×600 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| B101EW05 V1 | AUO | 10.1 | 1280×800 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| HJ101IA-01F | Innolux | 10.1 | 1280×800 |
| HV089WU1-1E0 | HYDIS | 8.9 | 1920×1200 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| LP125WH2-SLT1 | LG Display | 12.5 | 1366×768 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| P120ZDG-BF2 | Innolux | 12.0 | 2160×1440 |
