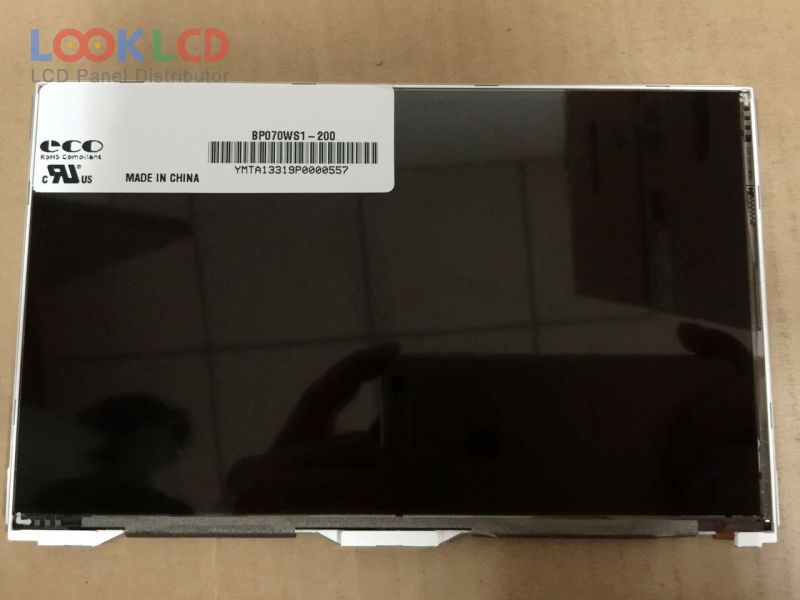

| PartZenbakia | BP070WS1-200 |
| Marka | BOE |
| Tamaina | 7.0 |
| Aplikazio | PAD |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 900:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | BOE |
| panel eredua | BP070WS1-200 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | ADS, Normally Black, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 164.05×102.6×2.75 mm |
| azalera | Glare (Haze 0%), Hard coating (3H), Antireflection |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193152% |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 5S4PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 31 pins |
| sarrerako tentsioa | 3.7V (Typ.) |
| aplikazio | PAD |
