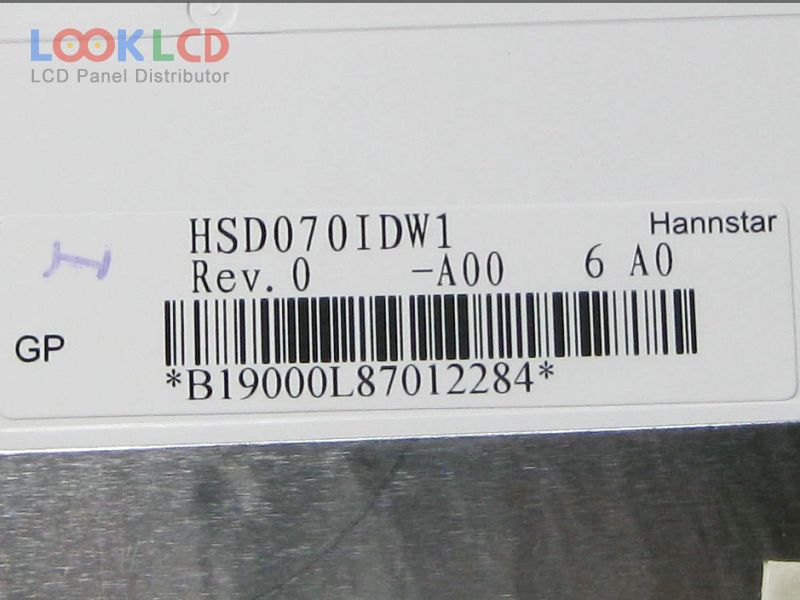

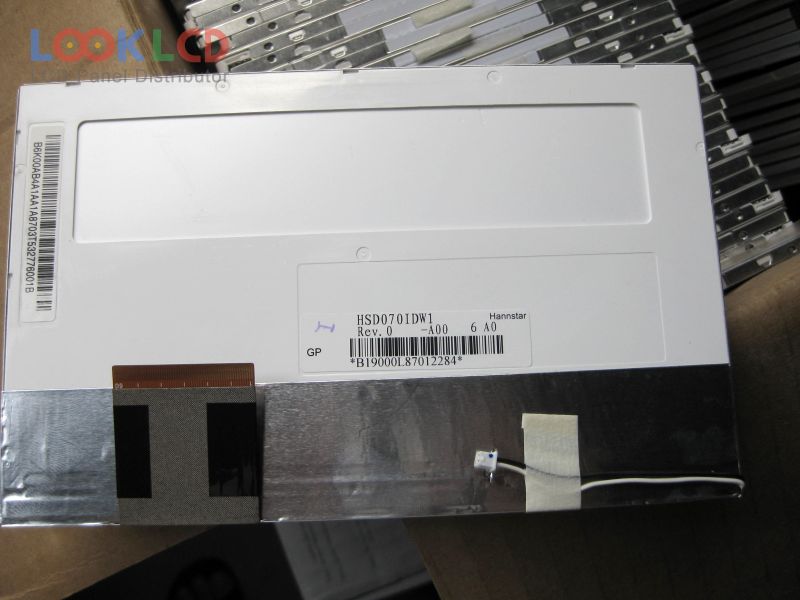

| PartZenbakia | HSD070IDW1-A00 |
| Marka | HannStar |
| Tamaina | 7.0 |
| Aplikazio | DPF |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 500:1 |
| Koloreak | 262K/16.2M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | HannStar |
| panel eredua | HSD070IDW1-A00 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×86.64 mm |
| eskema | 165×104×5.4 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.2M (6-bit / 6-bit + FRC) |
| erantzun denbora | 5/20 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 3S7PWLEDWithout Driver |

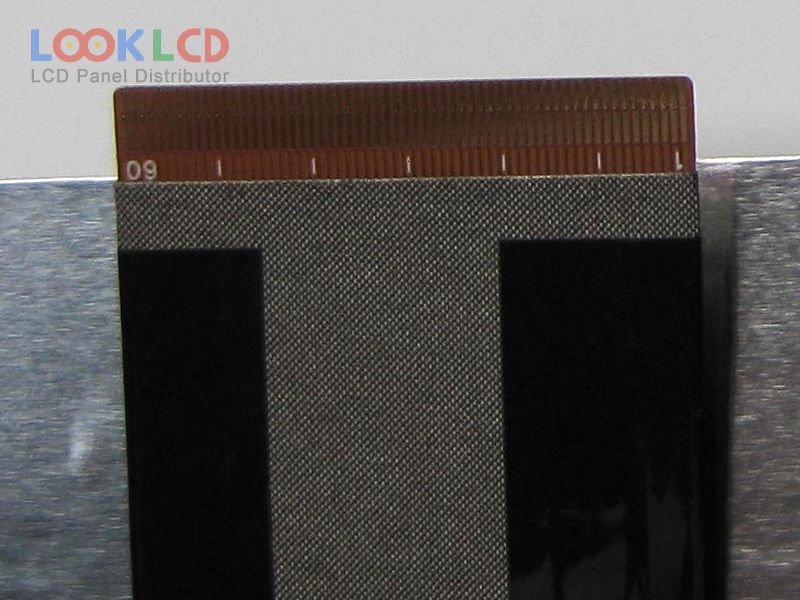

| seinale interfazea | TTL (1 ch, 6/8-bit), 60 pins |
| sarrerako tentsioa | 3.0/10.0/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | DPF |
