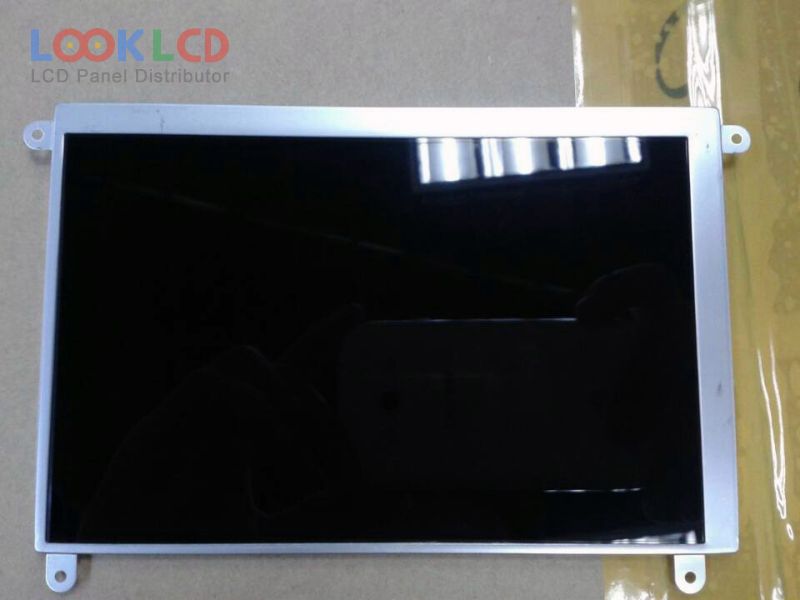

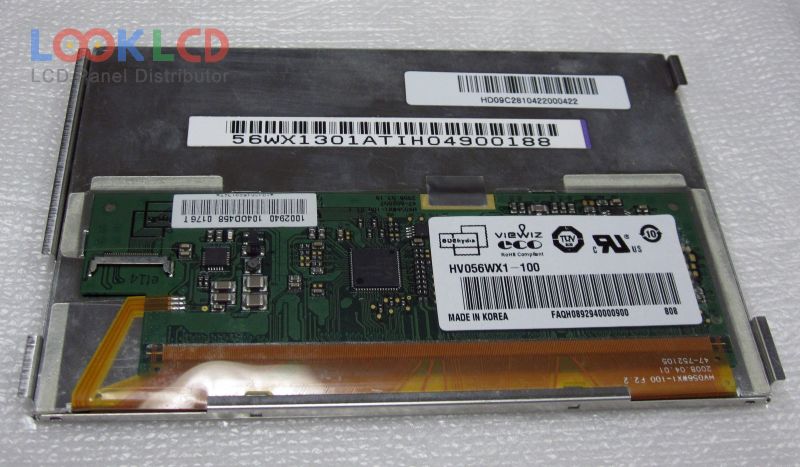

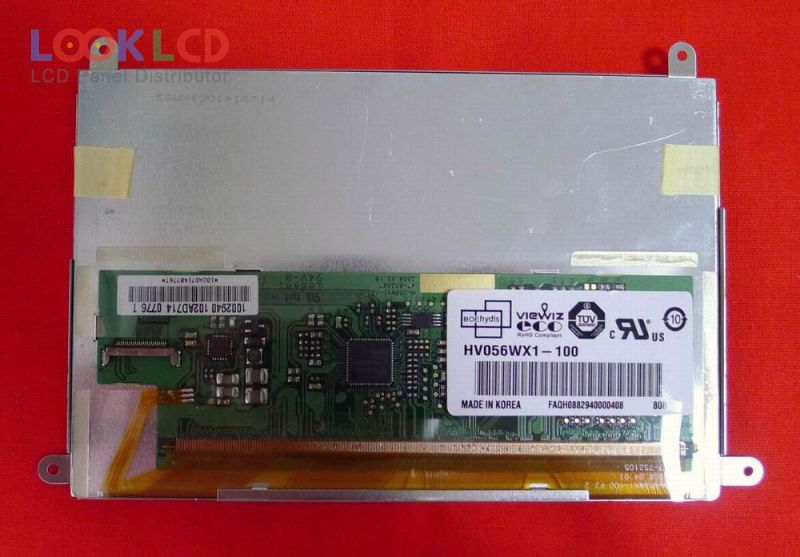

| PartZenbakia | HV056WX1-100 |
| Marka | HYDIS |
| Tamaina | 5.6 |
| Aplikazio | UMPC |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 500:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | BOE HYDIS |
| panel eredua | HV056WX1-100 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.6 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | HFFS, Normally Black, Transmissive |
| eremu aktiboa | 120.96×75.6 mm |
| eskema | 131.7×87.7×5 mm |
| azalera | |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 8S2PWLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6-bit), 25 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | UMPC |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.4 | Innolux | 5.6 | 640×480 |
| HV056WX1-100 | HYDIS | 5.6 | 1280×800 |
| HV056WX1-101 | HYDIS | 5.6 | 1280×800 |
| HV056WX2-100 | HYDIS | 5.6 | 1280×800 |
| LQ056A3AG01 | SHARP | 5.6 | 320×234 |
| LQ056A3AG01R | SHARP | 5.6 | 320×234 |
| LQ056A5GG01 | SHARP | 5.6 | 320×234 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| LTD056EV7F00 | TOSHIBA | 5.6 | 1280×800 |
| ACX534AKM-2 | SONY | 5.0 | 800×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HSD070PWW1-C00 | HannStar | 7.0 | 1280×800 |
| LB048WV1-TL01 | LG Display | 4.8 | 800×480 |
| LD070WS2-SL01 | LG Display | 7.0 | 1024×600 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| LT080EE04000 | TOSHIBA | 8.0 | 1600×768 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| N070ICG-LD4 | Innolux | 7.0 | 1280×800 |
