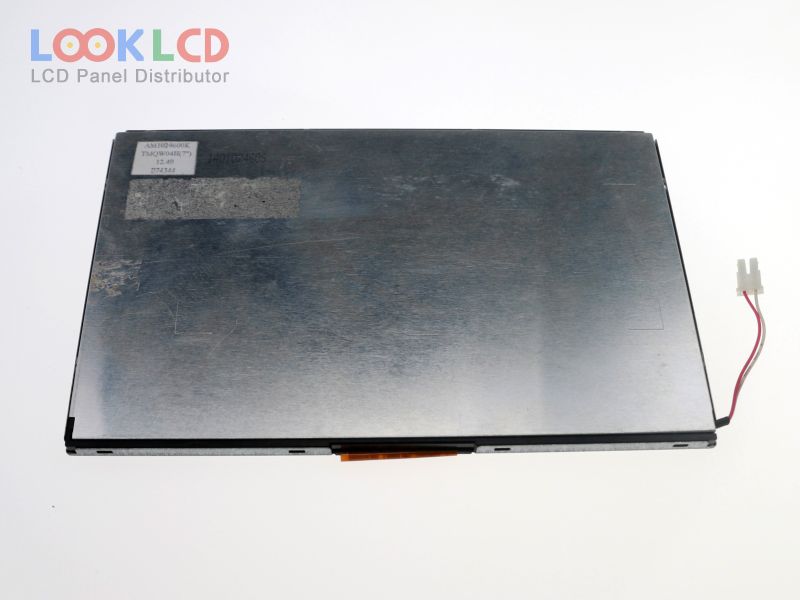

| PartZenbakia | AM-1024600KTMQW-04H |
| Marka | AMPIRE |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 1000 |
| CR | 700:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | AMPIRE |
| panel eredua | AM-1024600KTMQW-04H |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 165.5×104.44×5.3 mm |
| azalera | Glare (Haze 0%), Hard coating |
| distira | 1000 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 8S3PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 39 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | CNS |
