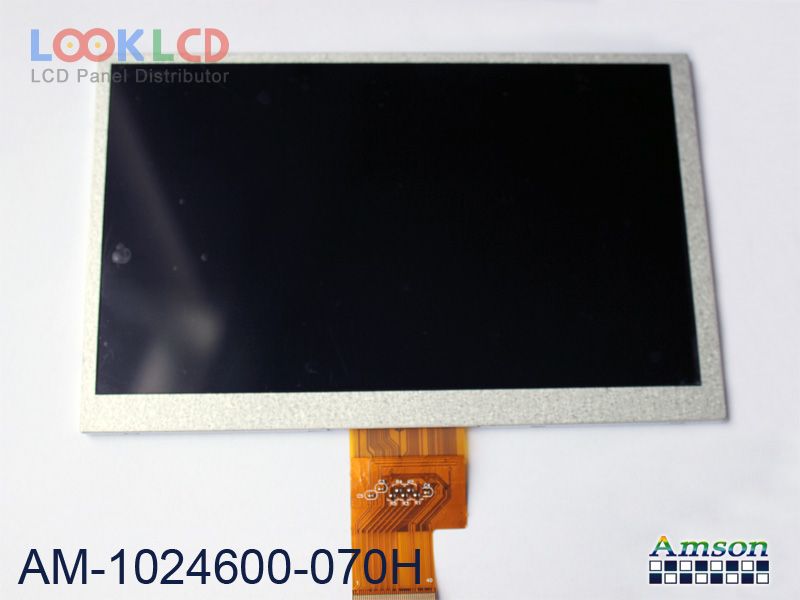

| PartZenbakia | AM-1024600-070H |
| Marka | Other |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | |
| CR | |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | Amson |
| panel eredua | AM-1024600-070H |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 165.75×105.39×3.7 mm |
| azalera | |
| distira | |
| kontraste-erlazioa | |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Dithering) |
| erantzun denbora | |
| ikuspegi angelua | |
| maiztasuna | 60Hz |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | CNS |
