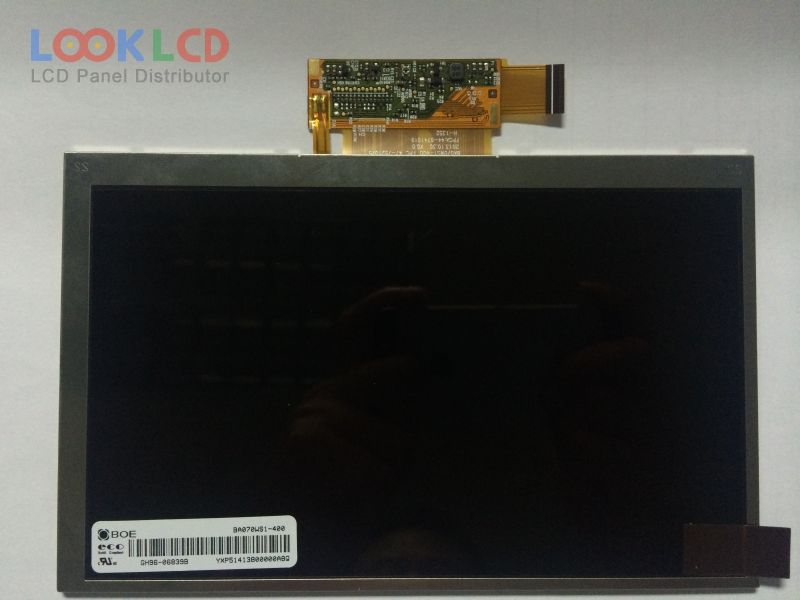

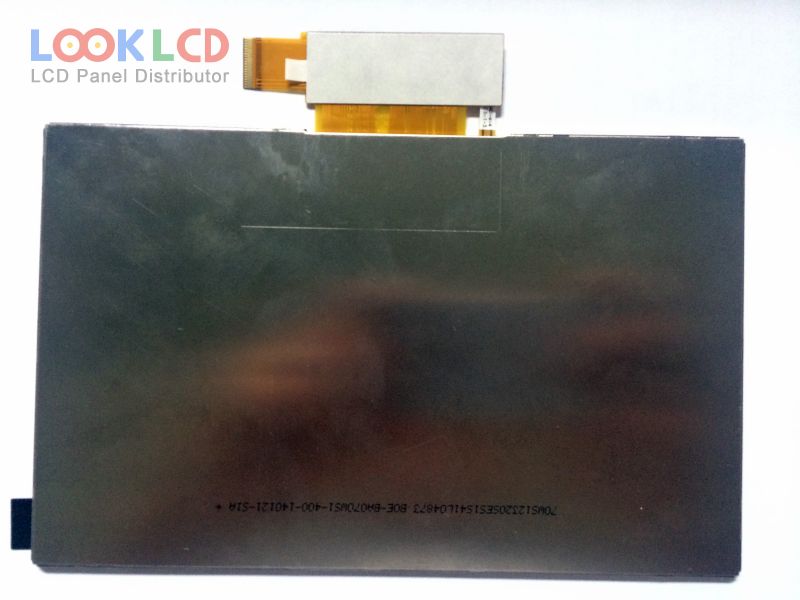

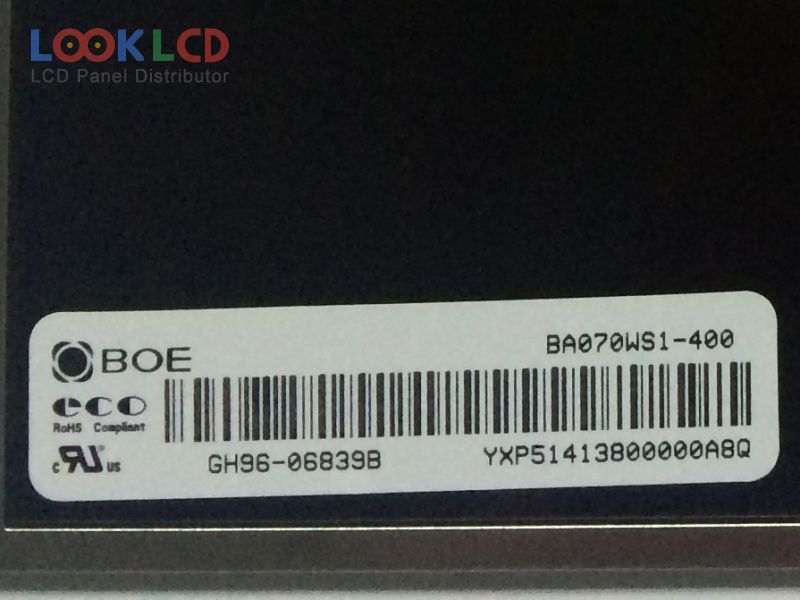

| PartZenbakia | BA070WS1-400 |
| Marka | BOE |
| Tamaina | 7.0 |
| Aplikazio | MP4 |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 700:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | BOE |
| panel eredua | BA070WS1-400 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 167.25×104.65×3 mm |
| azalera | Clear, Hard coating |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S6PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 39 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | MP4 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| BA070WS1-200 | BOE | 7.0 | 1024×600 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| BA070WS1-400 | BOE | 7.0 | 1024×600 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| BA070WS1-402 | BOE | 7.0 | 1024×600 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| LPM070W425D | JDI | 7.0 | 1200×1920 |
| LTA070B2C0F | TOSHIBA | 7.0 |
| A070VW04 V4 | AUO | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| DLC0700JMG-6 | Other | 7.0 | 1024×600 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| HV070WS1-1E1 | HYDIS | 7.0 | 1024×600 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
