| PartZenbakia | C070VW04 V6 |
| Marka | AUO |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 450 |
| CR | 600:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AUO |
| panel eredua | C070VW04 V6 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | AMVA, Normally Black, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 164.55×105.1×8.78 mm |
| azalera | Glare (Haze 0%), Antireflection |
| distira | 450 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193155% |
| erantzun denbora | 10/25 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 6S3PWLEDWithout Driver |

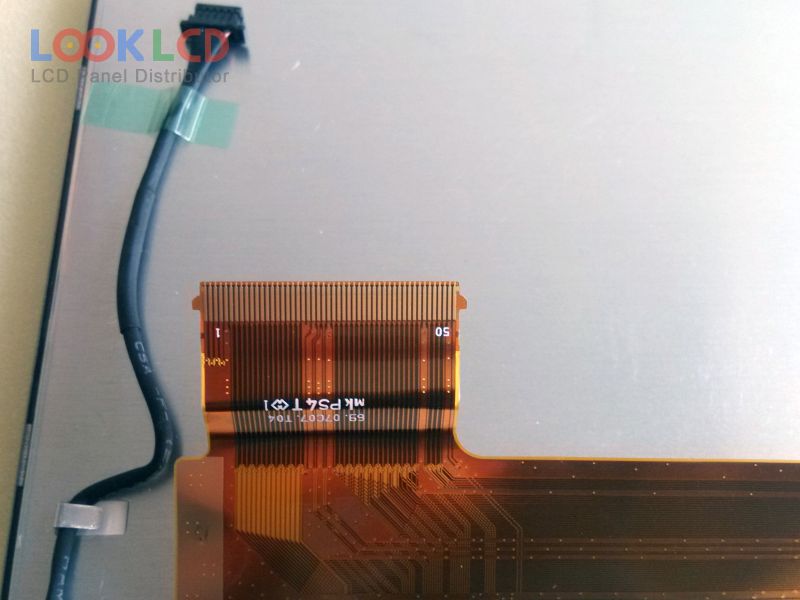

| seinale interfazea | Parallel RGB (1 ch, 6-bit), 50 pins |
| sarrerako tentsioa | 3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikazio | CNS |
| C070VAN01.1 | AUO | 7.0 | 800×480 |
| C070VTN01.0 | AUO | 7.0 | 800×480 |
| C070VTN02.0 | AUO | 7.0 | 800×480 |
| C070VVN03.0 | AUO | 7.0 | 800×480 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| C070VW02 V0 | AUO | 7.0 | 800×480 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| C070VW04 V0 | AUO | 7.0 | 800×480 |
| C070VW04 V6 | AUO | 7.0 | 800×480 |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| LA070WV1-TH01 | LG Display | 7.0 | 800×480 |
| LB035Q03-TD02 | LG Display | 3.5 | 320×240 |
| LB043WQ4-TD01 | LG Display | 4.3 | 480×272 |
| LB058WQ1-SD01 | LG Display | 5.8 | 400×240 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LQ065T9BR51U | SHARP | 6.5 | 400×240 |
| PA050DS7 | E Ink | 5.0 | 320×234 |
| PW065XS1 | E Ink | 6.5 | 400×234 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
