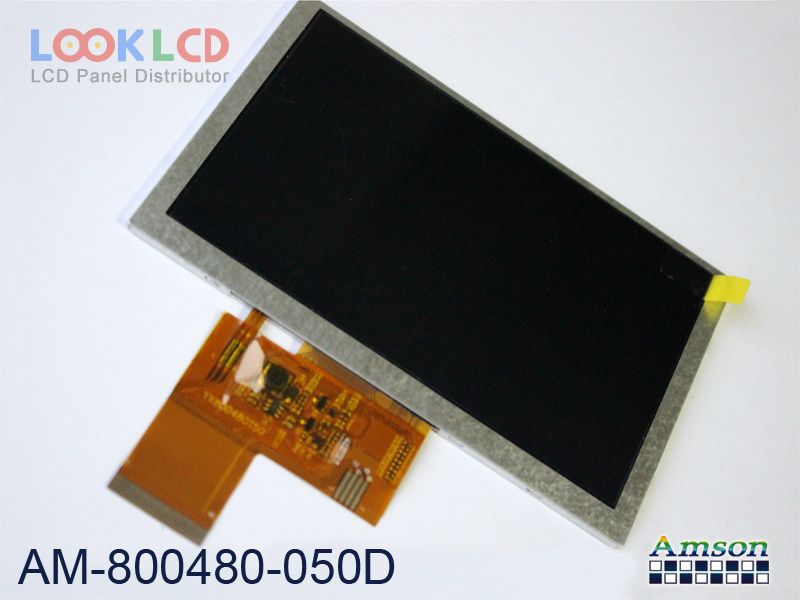

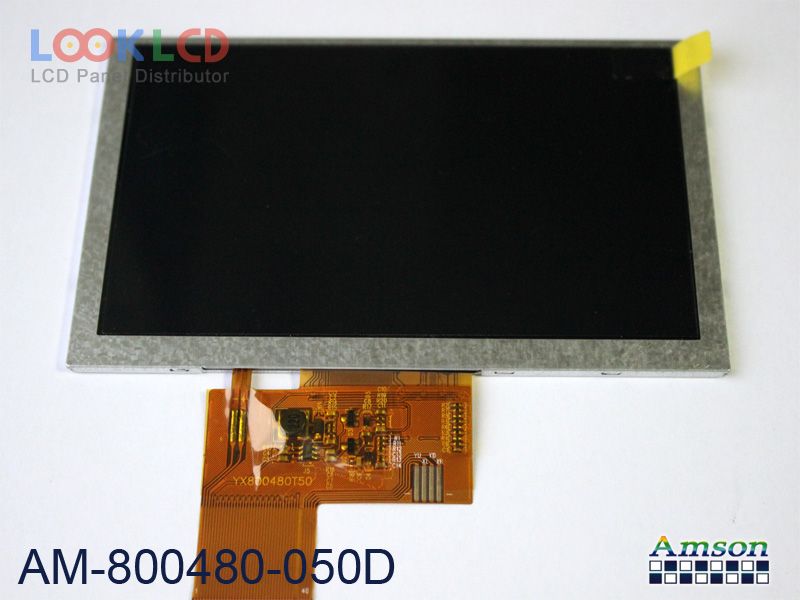

| PartZenbakia | AM-800480-050D |
| Marka | Other |
| Tamaina | 5.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | |
| CR | |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | Amson |
| panel eredua | AM-800480-050D |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 5.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 108×64.8 mm |
| eskema | 120.7×75.8×3.1 mm |
| azalera | |
| distira | |
| kontraste-erlazioa | |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | |
| ikuspegi angelua | |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | CNS |
