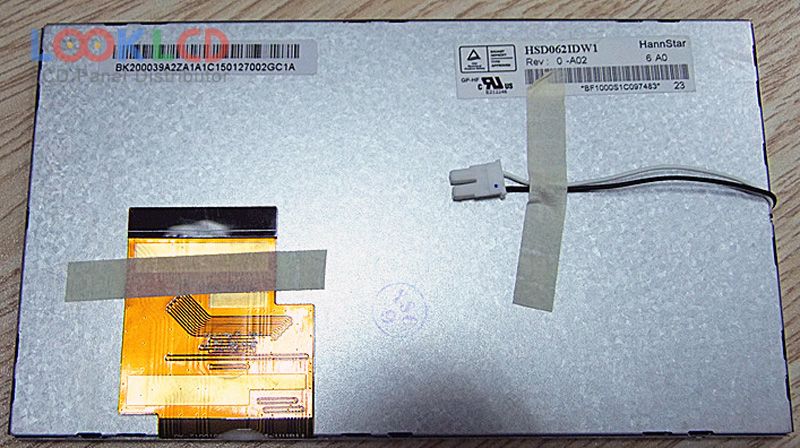

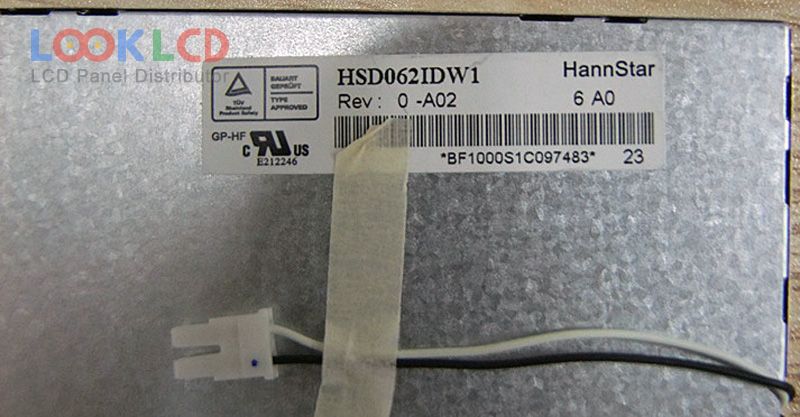

| PartZenbakia | HSD062IDW1-A02 |
| Marka | HannStar |
| Tamaina | 6.2 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 600:1 |
| Koloreak | 262K/16.2M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | HannStar |
| panel eredua | HSD062IDW1-A02 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 6.2 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 137.52×77.232 mm |
| eskema | 155.2×88.2 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| erantzun denbora | 2/6 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/75/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S7PWLEDWithout Driver |
| seinale interfazea | TTL (1 ch, 6/8-bit), 60 pins |
| sarrerako tentsioa | 3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | CNS |
