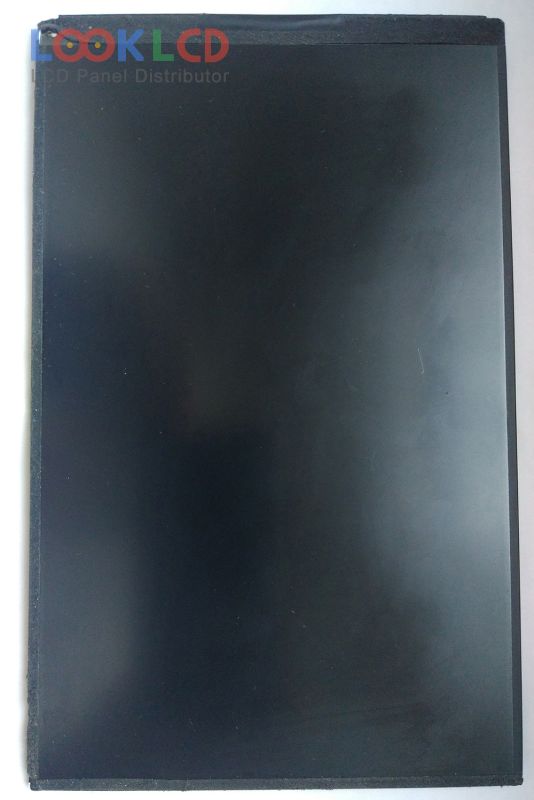

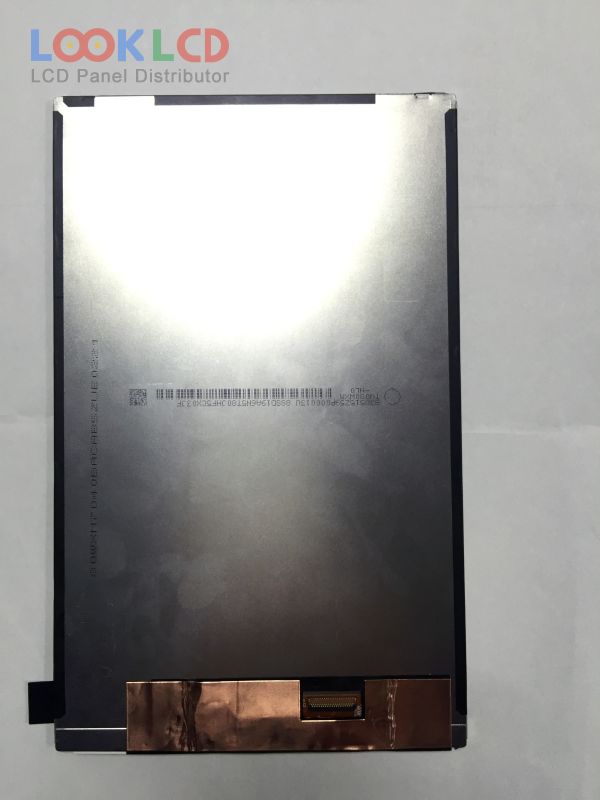

| PartZenbakia | TV080WXM-NL0 |
| Marka | BOE |
| Tamaina | 8.0 |
| Aplikazio | PAD |
| Ebazpena | 800×1280 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 800:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| panel marka | BOE |
| panel eredua | TV080WXM-NL0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.0 inch |
| ebazpena | 800(RGB)×1280 , WXGA |
| bistaratzeko modua | ADS, Normally Black, Transmissive |
| eremu aktiboa | 107.64×172.224 mm |
| eskema | 114.8×184.7×2.7 mm |
| azalera | Antiglare (Haze 25%) |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 800:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193160% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 7S3PWLEDWithout Driver |
| seinale interfazea | MIPI (4 data lanes), 39 pins |
| sarrerako tentsioa | 1.8/3.3V (Typ.)(VCI/VDDI) |
| aplikazio | PAD |
