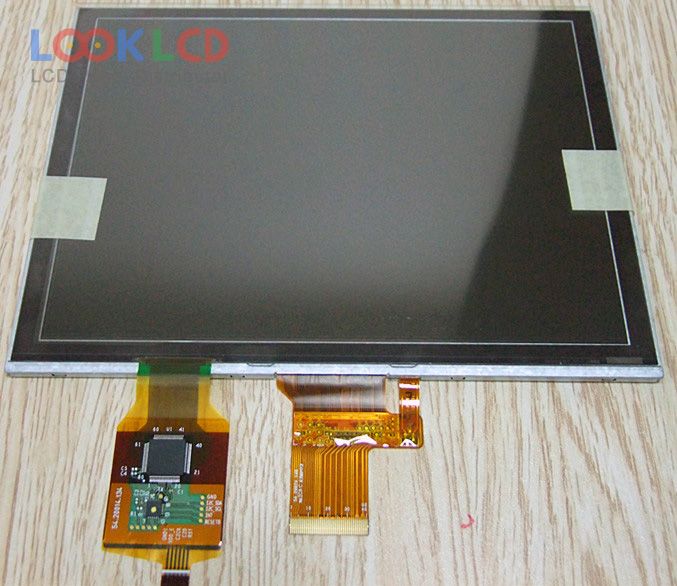

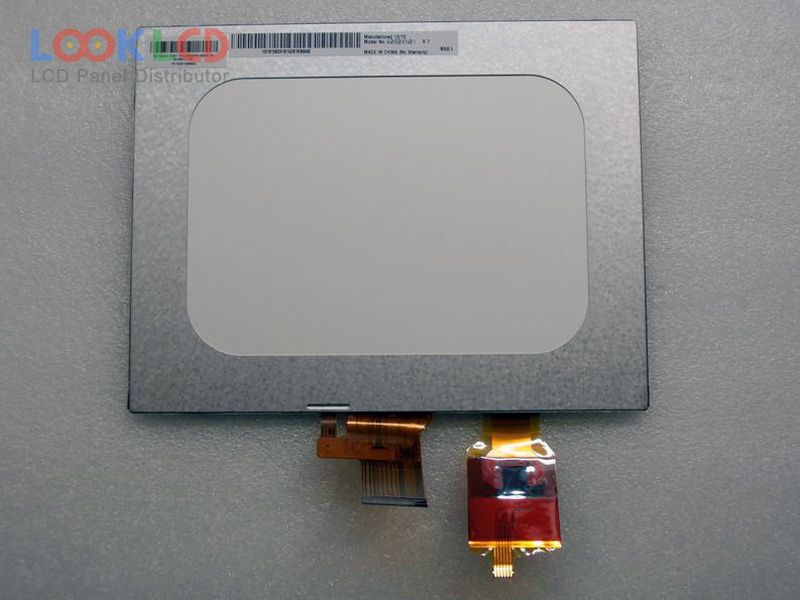

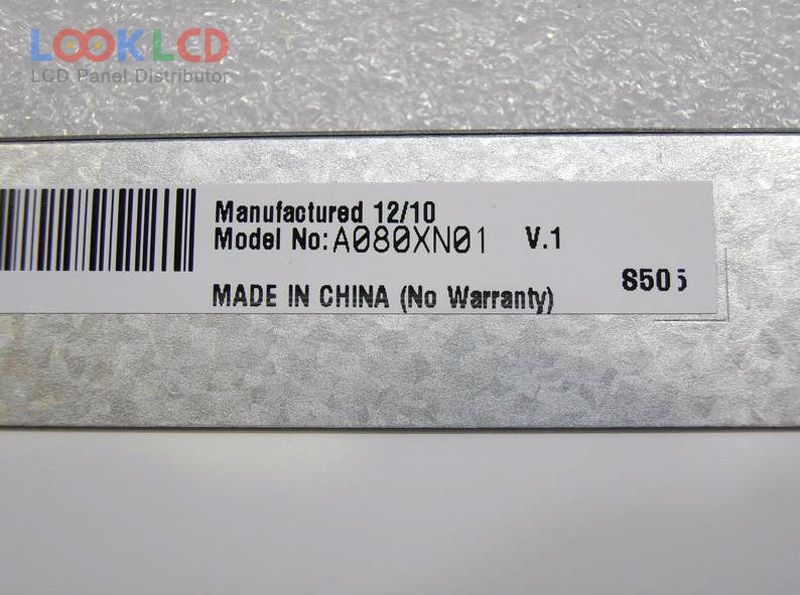

| PartZenbakia | A080XN01 V1 |
| Marka | AUO |
| Tamaina | 8.0 |
| Aplikazio | GM |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 600:1 |
| Koloreak | 16.2M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | AUO |
| panel eredua | A080XN01 V1 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.0 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 162.048×121.536 mm |
| eskema | 183×141.91 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 16.2M (6-bit + FRC), CIE193145% |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 55/55/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S10PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 8-bit), 40 pins |
| sarrerako tentsioa | 3.3/5.3/-5.3V (Typ.)(VDDIO/VDPA/VDNA) |
| aplikazio | GM |
| A080XN01 V1 | AUO | 8.0 | 1024×768 |
| AMS495QA01 | Samsung | 5.0 | 960×544 |
| G190ETN02.0 | AUO | 19.0 | 1280×1024 |
| LM230WF3-SLD1 | LG Display | 23.0 | 1920×1080 |
| LQ061Y1VG01 | SHARP | 6.1 | 800×480 |
| LQ104V1DG83 | SHARP | 10.4 | 640×480 |
| LQ121K1LG52 | SHARP | 12.1 | 1280×800 |
| LQ156M1LG21 | SHARP | 15.6 | 1920×1080 |
| LQ170K1LW02 | SHARP | 17.0 | 1280×768 |
| LQ190E1LW61 | SHARP | 19.0 | 1280×1024 |
