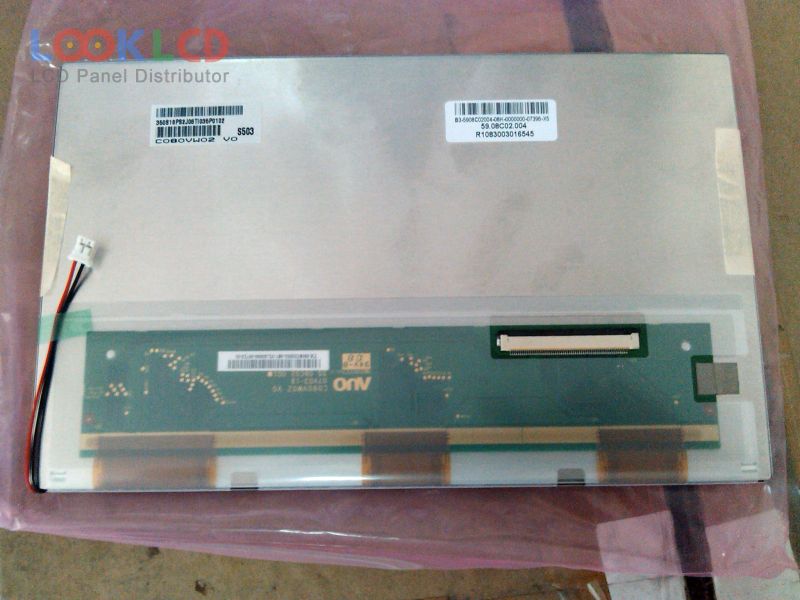

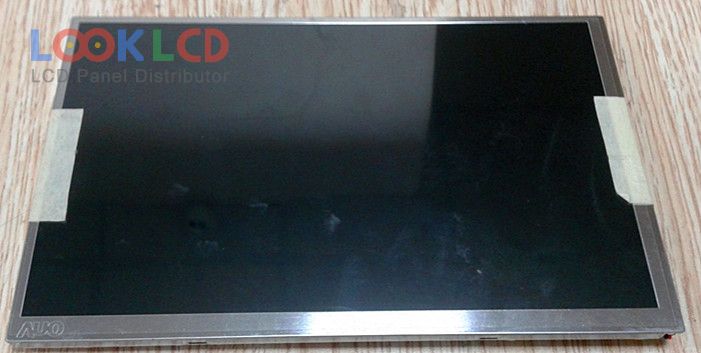

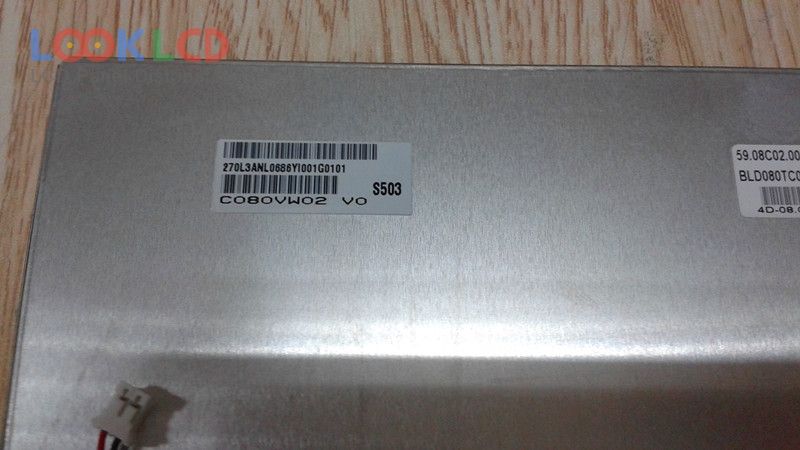

| PartZenbakia | C080VW02 V0 |
| Marka | AUO |
| Tamaina | 8.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AUO |
| panel eredua | C080VW02 V0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 175.2×105.12 mm |
| eskema | 186.5×117.22 mm |
| azalera | Antiglare |
| distira | 400 cd/m² (Min.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 15/20 (Typ.)(Tr/Td) |
| ikuspegi angelua | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 60 pins |
| sarrerako tentsioa | 3.3/9.8/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | CNS |
