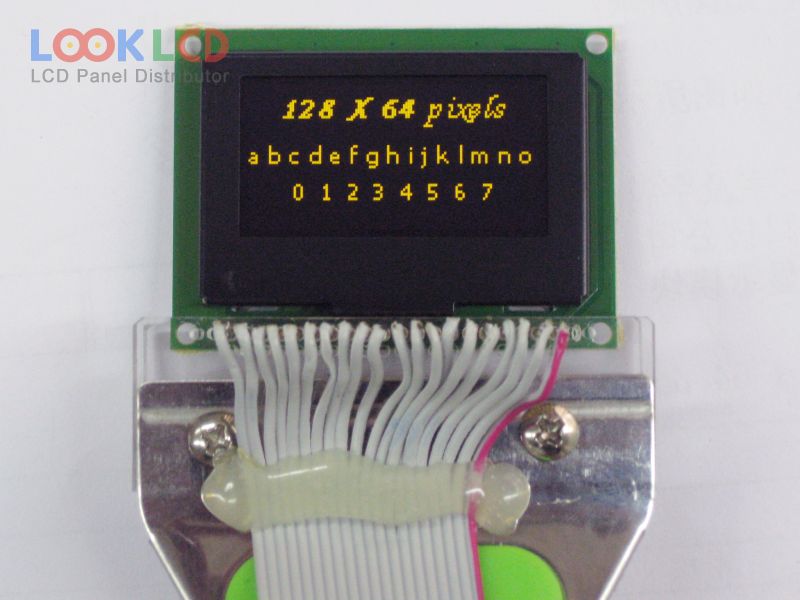

HGS128647-Y-EH-LV

HGS128647-Y-EH-LV
HGS128647-Y-EH-LV thumb
Marka
Other
Tamaina
1.54
Aplikazio
IA
Ebazpena
128×64
Konposizioa
OLED
Distira
150
CR
2000:1
Koloreak
Mono(Yellow)
Atzeko argia
self
Interfazea
CPU/SPI/I²C
In Stock
13674
Zehaztapenak

PartZenbakia HGS128647-Y-EH-LV
MarkaOther
Tamaina1.54
AplikazioIA
Ebazpena128×64
KonposizioaOLED
Distira150
CR2000:1
KoloreakMono(Yellow)
Atzeko argiaself
InterfazeaCPU/SPI/I²C
panel markaTSINGTEK
panel ereduaHGS128647-Y-EH-LV
panel mota PM-OLED , OLED
panelaren tamaina1.54 inch
ebazpena128×64
eremu aktiboa35.056×17.52 mm
eskema54×39.5×8.5 mm
azalera
distira150 cd/m² (Typ.)
kontraste-erlazioa2000 : 1 (Min.)
bistaratzeko koloreakMono(Yellow)
ikuspegi angelua80/80/80/80 (Min.)(L/R/U/D)
gidariaren icBuilt-in SSD1305
seinale interfazea8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins
sarrerako tentsioa3.3V (Typ.)
rohs:
aplikazioIA
