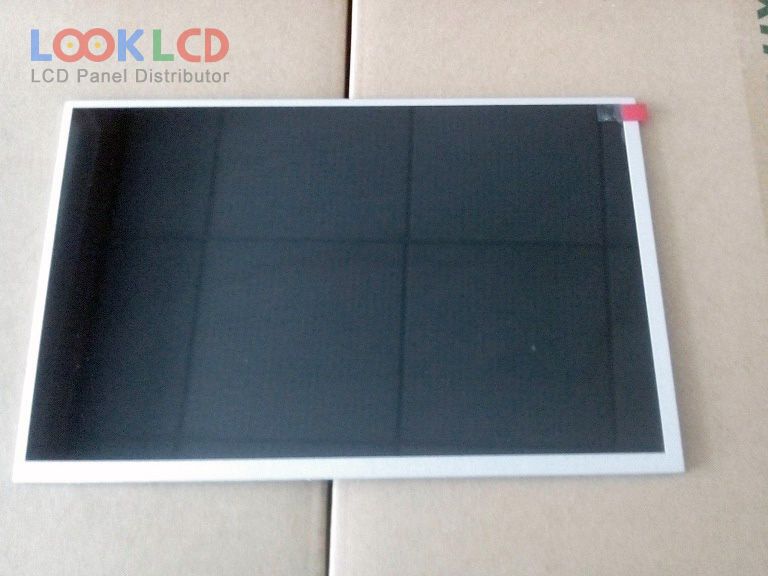

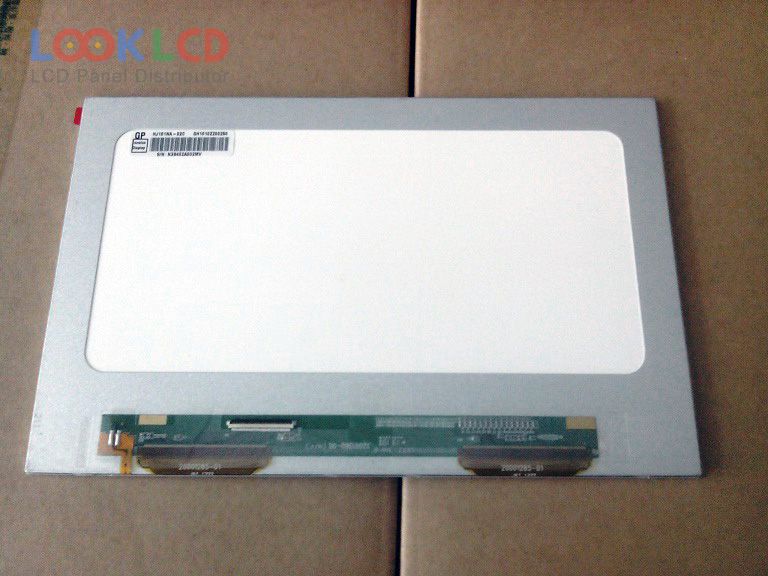

| PartZenbakia | HJ101NA-02C |
| Marka | Innolux |
| Tamaina | 10.1 |
| Aplikazio | PAD |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 700:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CHIMEI INNOLUX |
| panel eredua | HJ101NA-02C |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 216.96×135.6 mm |
| eskema | 229.46×149.1×5.5 mm |
| azalera | Glare (Haze 0%) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 700:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| erantzun denbora | 10/15 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 40 pins |
| sarrerako tentsioa | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| aplikazio | PAD |
