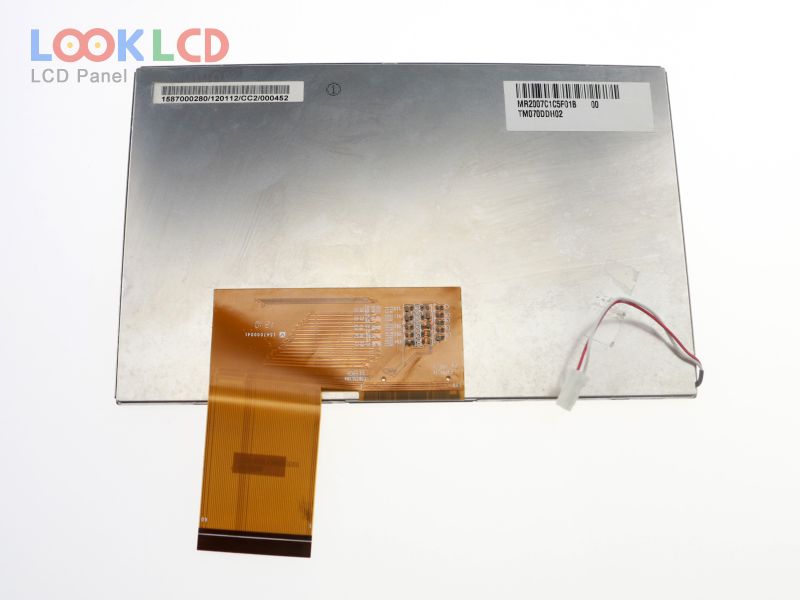

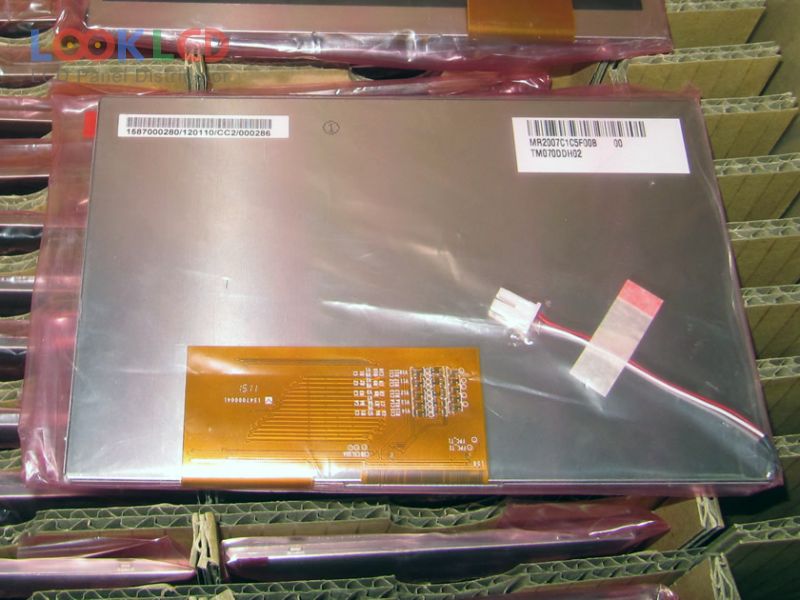

| PartZenbakia | TM070DDH02 |
| Marka | Tianma |
| Tamaina | 7.0 |
| Aplikazio | MP4 |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AVIC |
| panel eredua | TM070DDH02 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 153.6×90 mm |
| eskema | 165.75×105.39×3.7 mm |
| azalera | Antiglare |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193150% |
| erantzun denbora | 20 (Typ.)(Tr+Td) |
| ikuspegi angelua | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S6PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 60 pins |
| sarrerako tentsioa | 3.3/11/20/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | MP4 |
