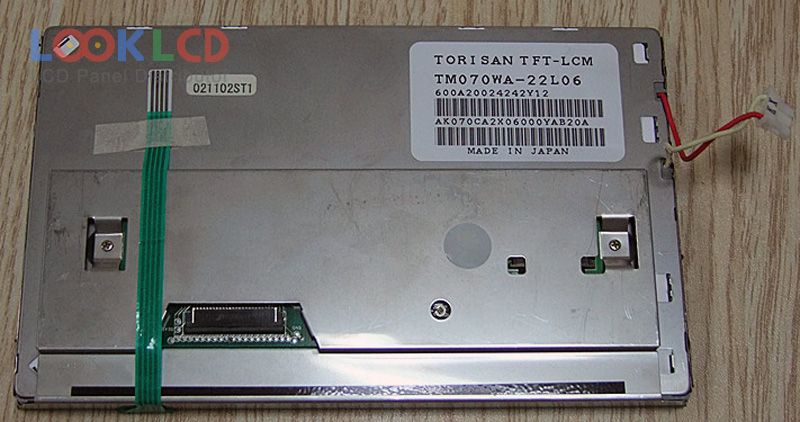

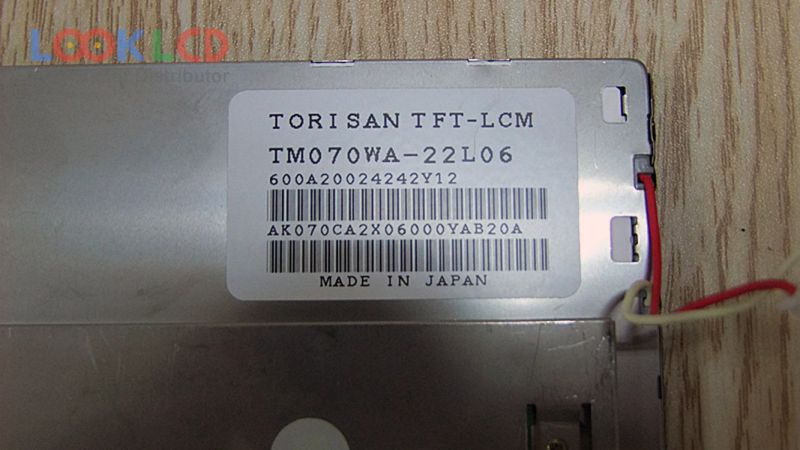

| PartZenbakia | TM070WA-22L06 |
| Marka | SANYO |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 480×234 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 100:1 |
| Koloreak | |
| Atzeko argia | CCFL |
| Interfazea | Analog |
| panel marka | TORISAN |
| panel eredua | TM070WA-22L06 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 480(RGB)×234 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 154.08×87.05 mm |
| eskema | 167×102 mm |
| azalera | Antiglare |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 100:1 (Min.) |
| bistaratzeko koloreak | |
| erantzun denbora | 30/20 (Typ.)(Tr/Td) |
| ikuspegi angelua | 60/60/30/40 (Max.)(CR≥5)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFL |
| seinale interfazea | TFT Specific Analog RGB, 24 pins |
| sarrerako tentsioa | 5.3/15.0/-14V (Typ.)(VSH/VGH/VGL) |
| aplikazio | CNS |
