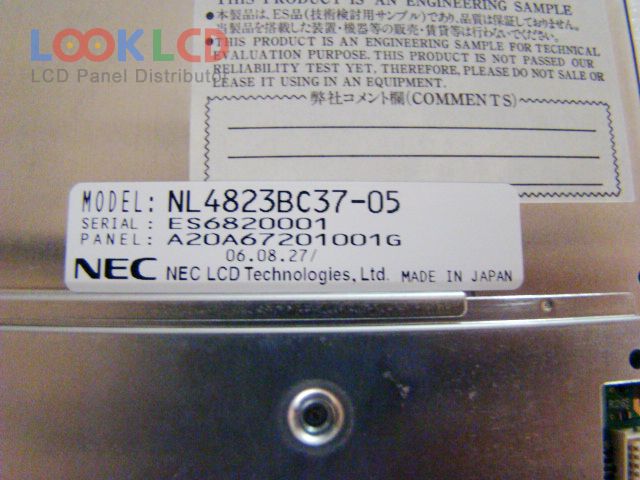

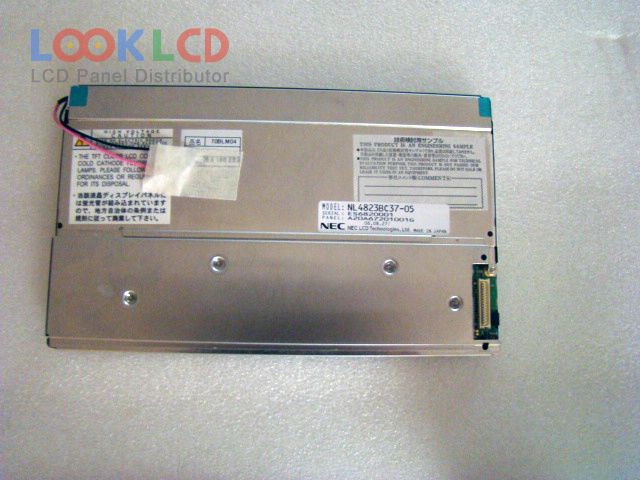

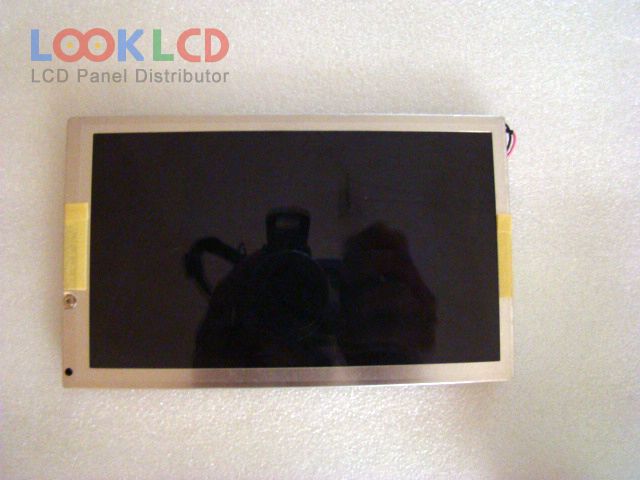

| PartZenbakia | NL4823BC37-05 |
| Marka | NLT |
| Tamaina | 7.0 |
| Aplikazio | IA |
| Ebazpena | 480×234 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 600:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL4823BC37-05 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 480(RGB)×234 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 154.08×87.05 mm |
| eskema | 174.5×105.5×11 mm |
| azalera | Clear, Hard coating (3H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193140% |
| erantzun denbora | 6/19 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 3.3V (Typ.)(VCC) |
| aplikazio | IA |
