Other OEL9M0078-W-E fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

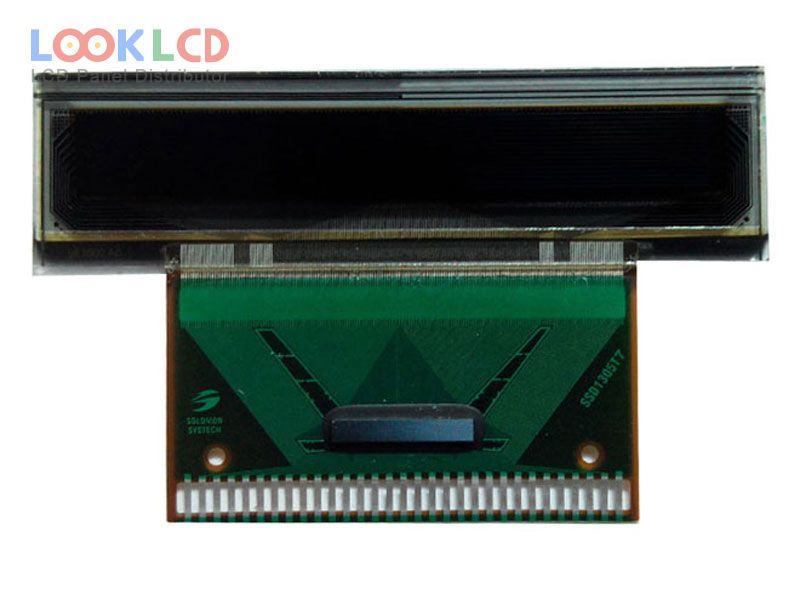

OEL9M0078-W-E

OEL9M0078-W-E
OEL9M0078-W-E thumb
Marka
Other
Tamaina
1.45
Aplikazio
IA
Ebazpena
132×16
Konposizioa
OLED
Distira
CR
10000:1
Koloreak
Mono(White)
Atzeko argia
self
Interfazea
CPU/SPI/I²C
In Stock
9490
Zehaztapenak

PartZenbakia OEL9M0078-W-E
MarkaOther
Tamaina1.45
AplikazioIA
Ebazpena132×16
KonposizioaOLED
Distira
CR10000:1
KoloreakMono(White)
Atzeko argiaself
InterfazeaCPU/SPI/I²C
panel markaTRULY
panel ereduaOEL9M0078-W-E
panel mota PM-OLED , OLED
panelaren tamaina1.45 inch
ebazpena132×16
eremu aktiboa36.412×4.62 mm
eskema43.06×11.75×1.6 mm
azalera
distira
kontraste-erlazioa10000 : 1 (Min.)
bistaratzeko koloreakMono(White) (1-bit)
ikuspegi angelua80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
gidariaren icTAB Built-in SSD1305T7R1
seinale interfazeaCPU/SPI/I²C, 31 pins
aplikazioIA
Familia Eredua
OEL9M0039-G-E Other 1.5 128×128
OEL9M0039-W-E Other 1.5 128×128
OEL9M0039-Y-E Other 1.5 128×128
OEL9M0064-Y-E Other 2.0 128×32
OEL9M0065-W-E Other 2.7 256×64
OEL9M0068-R-E Other 0.91 128×32
OEL9M0073-B-E Other 1.0 128×64
OEL9M0073-W-E Other 1.0 128×64
OEL9M0078-G-E Other 1.45 132×16
OEL9M0078-Y-E Other 1.45 132×16
