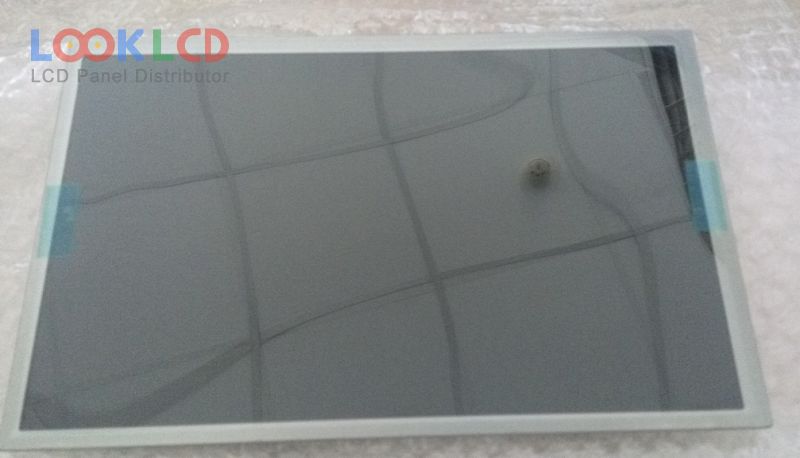

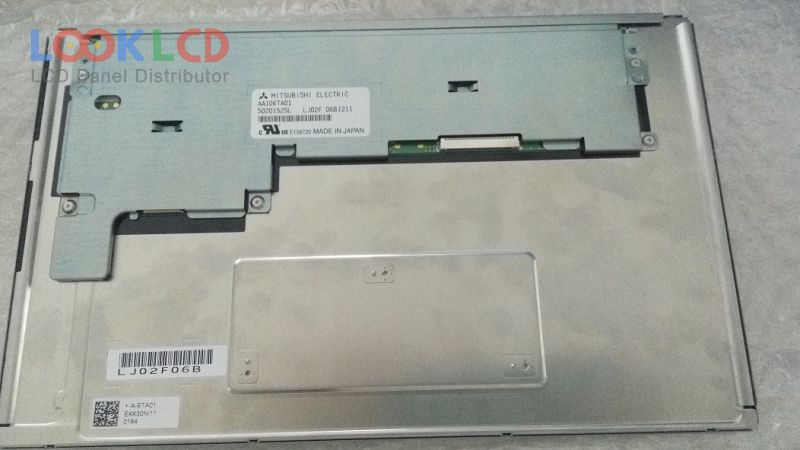

| PartZenbakia | AA106TA01 |
| Marka | Mitsubishi |
| Tamaina | 10.6 |
| Aplikazio | IA |
| Ebazpena | 1280×768 |
| Konposizioa | LCM |
| Distira | 1000 |
| CR | 1000:1 |
| Koloreak | 262K/16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | Mitsubishi |
| panel eredua | AA106TA01 1 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.6 inch |
| ebazpena | 1280(RGB)×768 , WXGA |
| bistaratzeko modua | IPS, Normally Black, Transmissive |
| eremu aktiboa | 231.36×138.816 mm |
| eskema | 250×157×9.4 mm |
| azalera | Clear, Hard coating (3H) |
| distira | 1000 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| erantzun denbora | 12/12 (Typ.)(Tr/Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
