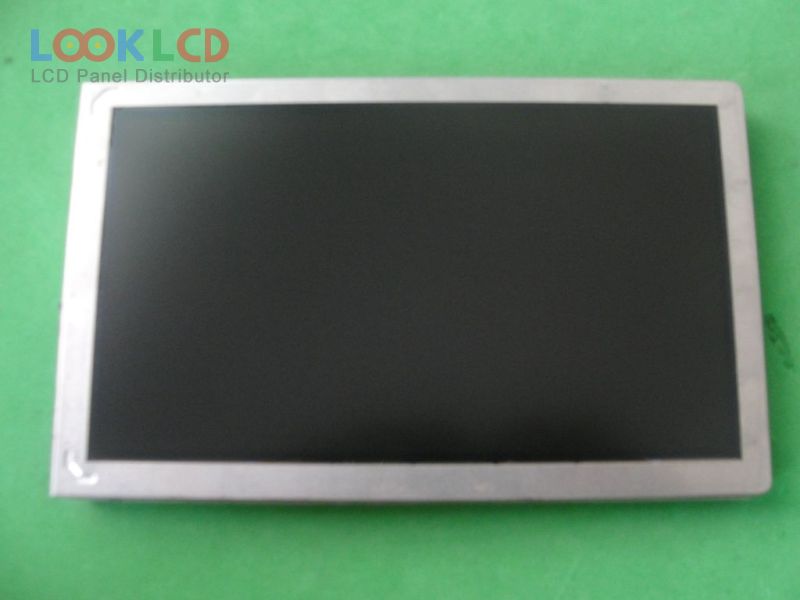

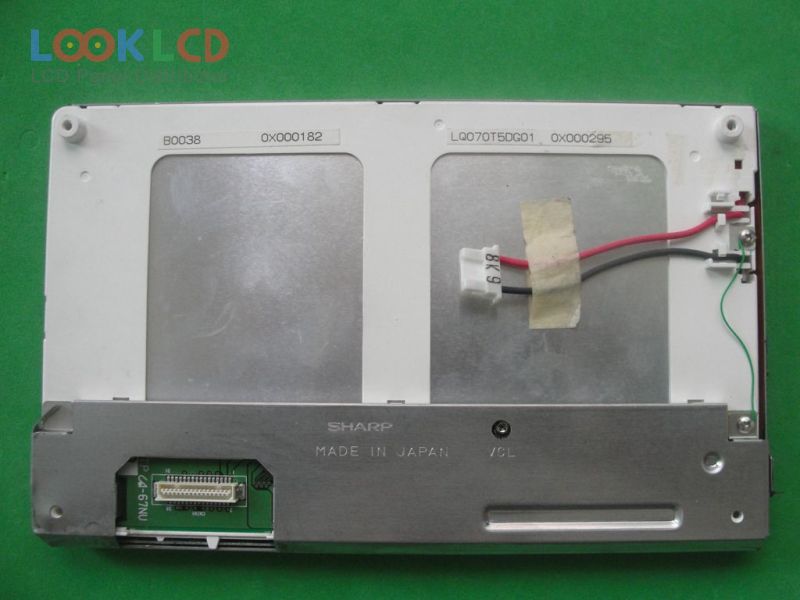

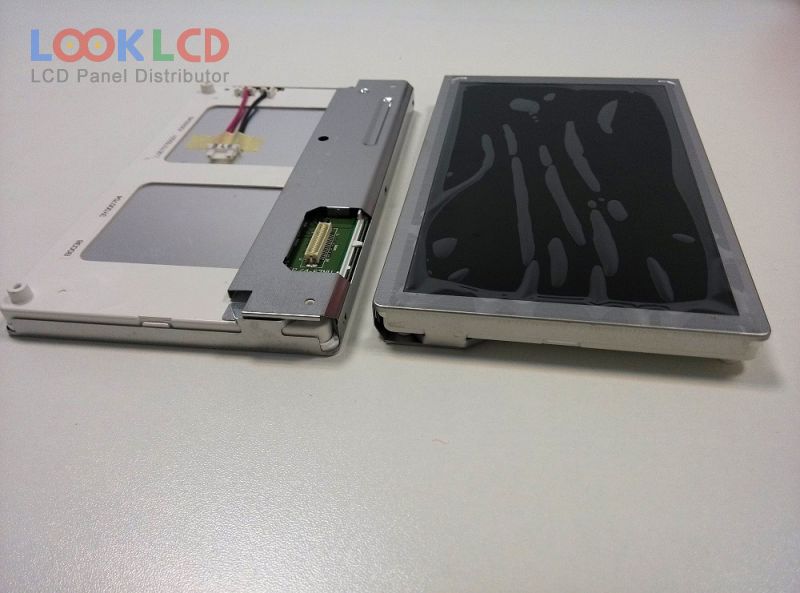

| PartZenbakia | LQ070T5DG01 |
| Marka | SHARP |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 854×480 |
| Konposizioa | LCM |
| Distira | 410 |
| CR | 60:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ070T5DG01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 854(RGB)×480 , FWVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 155×87.12 mm |
| eskema | 176.9×109.3 mm |
| azalera | Antiglare |
| distira | 410 cd/m² (Typ.) |
| kontraste-erlazioa | 60:1 (Min.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 30/50 (Typ.)(Tr/Td) |
| ikuspegi angelua | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| aplikazio | CNS |
