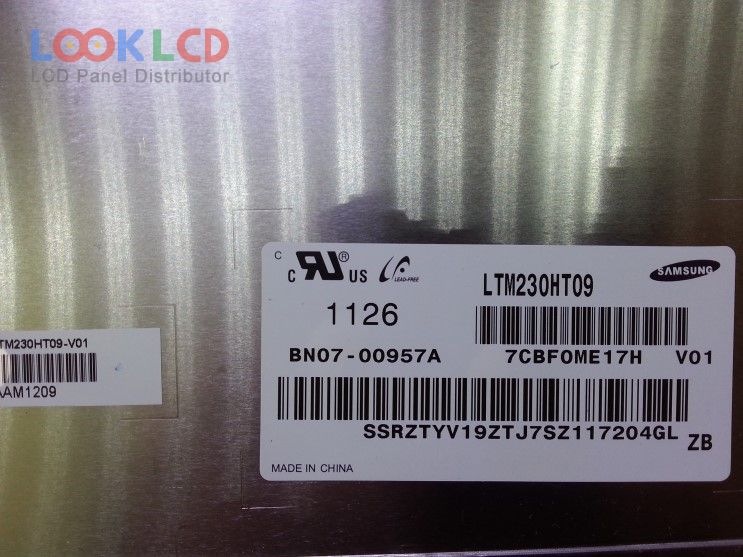

| PartZenbakia | LTM230HT09 |
| Marka | Samsung |
| Tamaina | 23.0 |
| Aplikazio | DMPC |
| Ebazpena | 1920×1080 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTM230HT09 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 23.0 inch |
| ebazpena | 1920(RGB)×1080 , FHD |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 509.76×286.74 mm |
| eskema | 534×311.7×10.7 mm |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193172% |
| erantzun denbora | 5 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 13S3PWLEDWithout Driver |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
