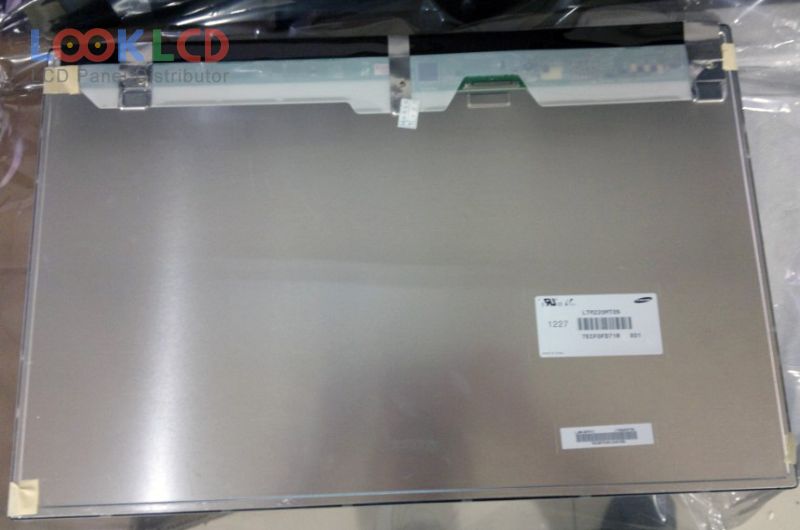

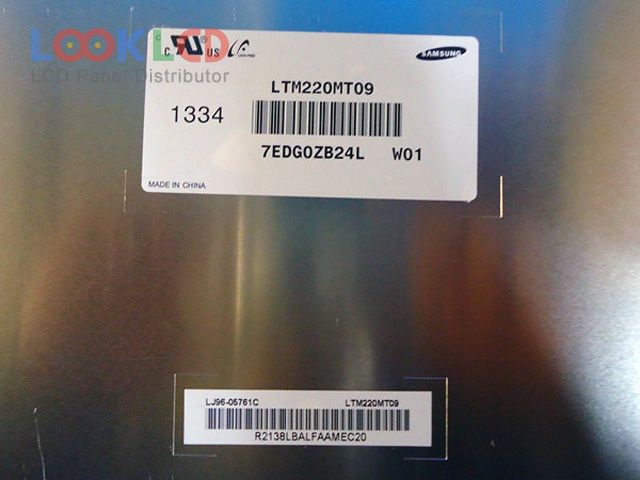

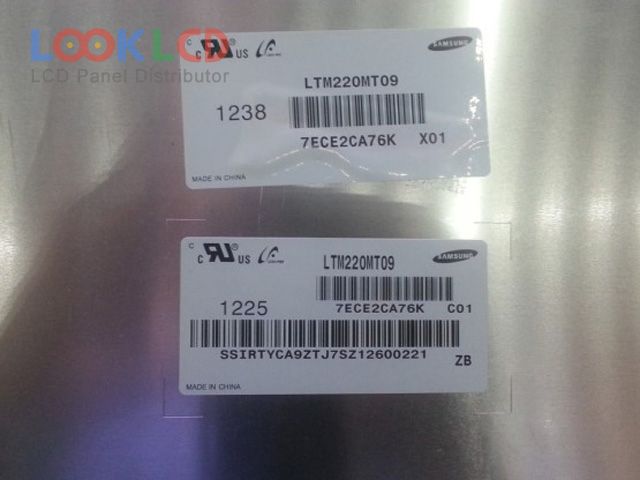

| PartZenbakia | LTM220MT09 |
| Marka | Samsung |
| Tamaina | 22.0 |
| Aplikazio | DMPC |
| Ebazpena | 1680×1050 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTM220MT09 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 22.0 inch |
| ebazpena | 1680(RGB)×1050 , WSXGA+ |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 473.76×296.1 mm |
| eskema | 493.7×320.1×10.7 mm |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193172% |
| erantzun denbora | 5 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S3PWLEDWithout Driver |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
| LTM220CS01 | Samsung | 22.0 | 1920×1200 |
| LTM220M1-L01 | Samsung | 22.0 | 1680×1050 |
| LTM220M1-L02(Glare) | Samsung | 22.0 | 1680×1050 |
| LTM220M3-L02 | Samsung | 22.0 | 1680×1050 |
| LTM220MT05 | Samsung | 22.0 | 1680×1050 |
| LTM220MT09 | Samsung | 22.0 | 1680×1050 |
| LTM220MT12 | Samsung | 22.0 | 1680×1050 |
| M220Z1-L01 | Innolux | 22.0 | 1680×1050 |
| M220Z1-L09 | Innolux | 22.0 | 1680×1050 |
| M220Z1-L0A | Innolux | 22.0 | 1680×1050 |
| HM215WU3-101 | BOE | 21.5 | 1920×1080 |
| LM171WX3-TLC1 | LG Display | 17.1 | 1440×900 |
| LM195WD2-SLA1 | LG Display | 19.5 | 1600×900 |
| LM215WF1-TLE1 | LG Display | 21.5 | 1920×1080 |
| LM220WE4-SLB1 | LG Display | 22.0 | 1680×1050 |
| LM270WQ1-SDB3 | LG Display | 27.0 | 2560×1440 |
| LTM213U6-L01 | Samsung | 21.3 | 1600×1200 |
| M170E8-L01 | Innolux | 17.0 | 1280×1024 |
| M170ETN01.0 | AUO | 17.0 | 1280×1024 |
| QD17EL07 Rev.09 | QDI | 17.0 | 1280×1024 |
