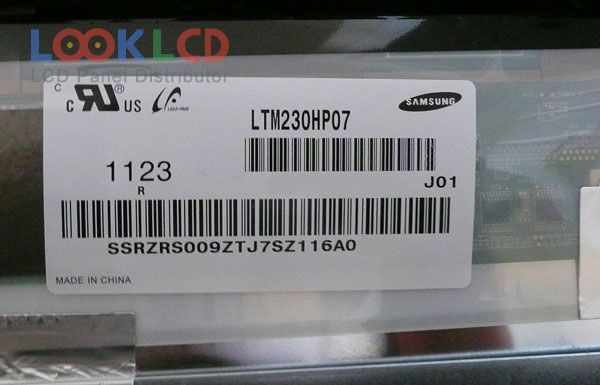

| PartZenbakia | LTM230HP07 |
| Marka | Samsung |
| Tamaina | 23.0 |
| Aplikazio | DMPC |
| Ebazpena | 1920×1080 |
| Konposizioa | LCM |
| Distira | |
| CR | 3000:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | SAMSUNG |
| panel eredua | LTM230HP07 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 23.0 inch |
| ebazpena | 1920(RGB)×1080 , FHD |
| bistaratzeko modua | PVA, Normally Black, Transmissive |
| eremu aktiboa | 509.76×286.74 mm |
| azalera | |
| distira | |
| kontraste-erlazioa | 3000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (6-bit + Hi-FRC), CIE193172% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLED |
| seinale interfazea | LVDS (2 ch, 8-bit), 30 pins |
| sarrerako tentsioa | 5.0V (Typ.) |
| aplikazio | DMPC |
| LTM230HL08 | Samsung | 23.0 | 1920×1080 |
| LTM230HP07 | Samsung | 23.0 | 1920×1080 |
| LTM230HT01 | Samsung | 23.0 | 1920×1080 |
| LTM230HT03 | Samsung | 23.0 | 1920×1080 |
| LTM230HT05 | Samsung | 23.0 | 1920×1080 |
| LTM230HT09 | Samsung | 23.0 | 1920×1080 |
| LTM230HT10 | Samsung | 23.0 | 1920×1080 |
| LTM230HU01 | Samsung | 23.0 | 1920×1080 |
| LTM230TT01 | Samsung | 23.0 | 2048×1152 |
| LTM236FL01 | Samsung | 23.6 | 3840×2160 |
| HR270WU1-200 | BOE | 27.0 | 1920×1080 |
| HSD190ME12-A02 | HannStar | 19.0 | 1280×1024 |
| LM230WF3-SLQ1 | LG Display | 23.0 | 1920×1080 |
| LM250WF2-TLA1 | LG Display | 25.0 | 1920×1080 |
| LM270WF6-SSZ1 | LG Display | 27.0 | 1920×1080 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| M156B1-L02 | Innolux | 15.6 | 1366×768 |
| M170EG01 V7 | AUO | 17.0 | 1280×1024 |
| MV215FHM-N30 | BOE | 21.5 | 1920×1080 |
| TMS150XG1-10TB | Tianma | 15.0 | 1024×768 |
