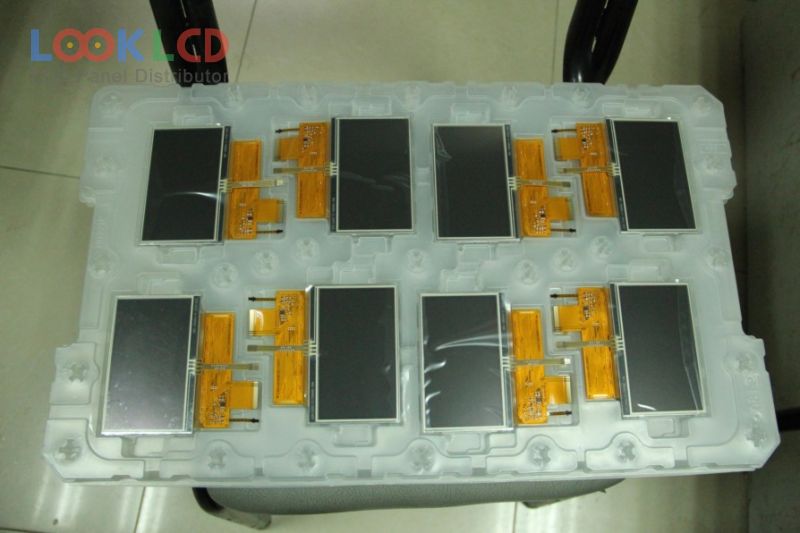

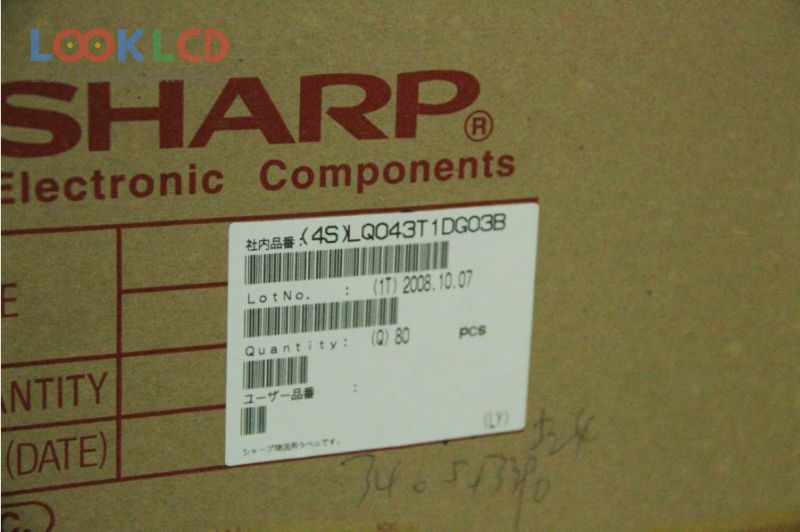

| PartZenbakia | LQ043T1DG03B |
| Marka | SHARP |
| Tamaina | 4.3 |
| Aplikazio | HHP |
| Ebazpena | 480×272 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 300:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ043T1DG03B |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 4.3 inch |
| ebazpena | 480(RGB)×272 , WQVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 95.04×53.856 mm |
| eskema | 105.5×67.2×5.35 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 30/30 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 40 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VCC/AVDD) |
| aplikazio | HHP |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LQ043T1DG28 | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T1LX01A | SHARP | 4.3 | 540×960 |
| LQ043T3DG02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| 24QVW1H | SII | 2.4 | 240×320 |
| COM35T3112DTR | ORTUSTECH | 3.5 | 240×320 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LM038QC1R10 | SHARP | 3.8 | 320×240 |
| LQ038B7DB01 | SHARP | 3.8 | 320×480 |
| LQ040Y3DX80B | SHARP | 4.0 | 480×800 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
| LTM035A776C | TOSHIBA | 3.5 | 240×320 |
| TX09D30VM1CCA | KOE | 3.5 | 240×320 |
