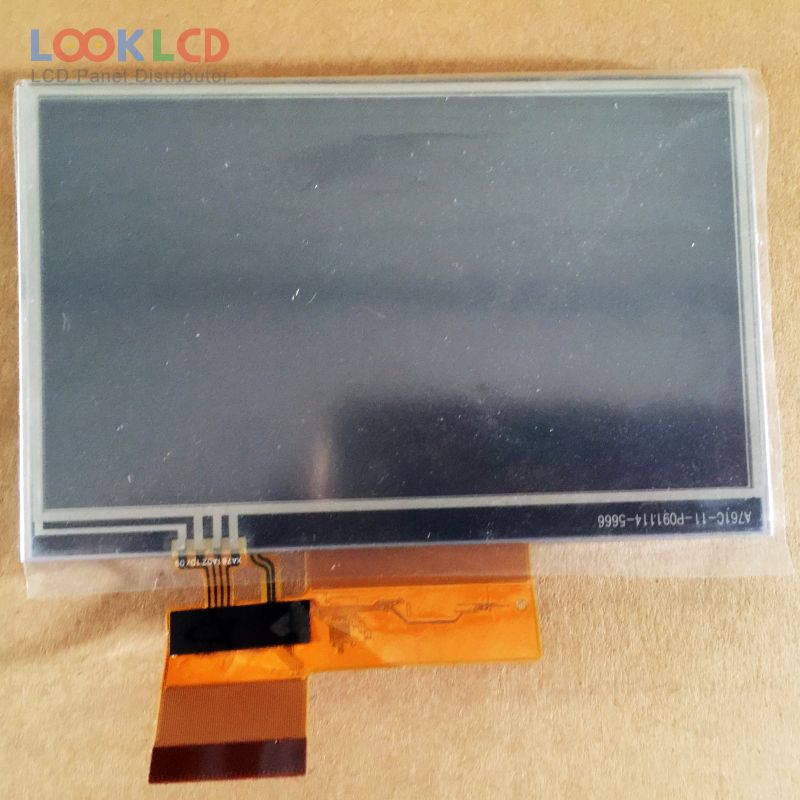

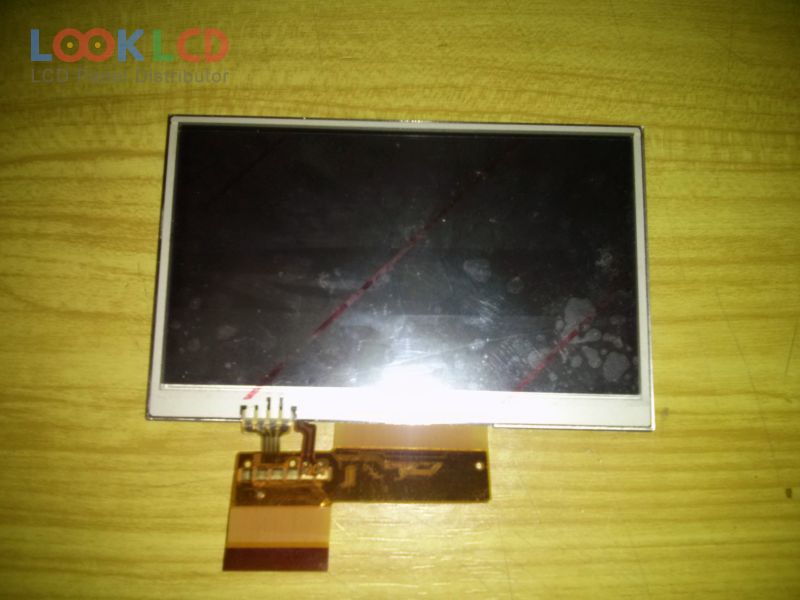

| PartZenbakia | LQ043T1DH01 |
| Marka | SHARP |
| Tamaina | 4.3 |
| Aplikazio | PND |
| Ebazpena | 480×272 |
| Konposizioa | LCM |
| Distira | 360 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ043T1DH01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 4.3 inch |
| ebazpena | 480×272(RGB) , WQVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 95.04×53.86 mm |
| eskema | 105.5×67.2×5.3 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 360 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193148% |
| erantzun denbora | 30/30 (Typ.)(Tr/Td) |
| ikuspegi angelua | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S1PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| sarrerako tentsioa | 1.8/3.3/2.8V (Typ.)(VDDIO/VCI) |
| aplikazio | PND |
