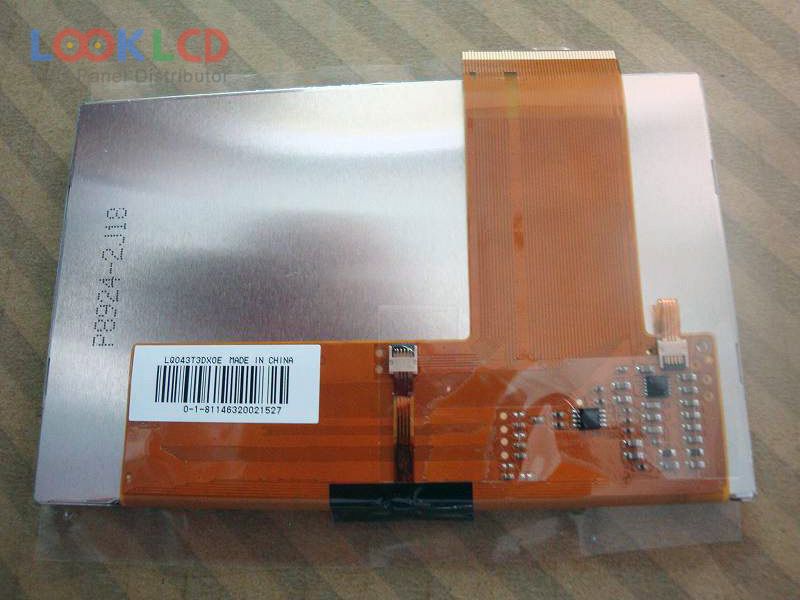

| PartZenbakia | LQ043T3DX0E |
| Marka | SHARP |
| Tamaina | 4.3 |
| Aplikazio | PND |
| Ebazpena | 480×272 |
| Konposizioa | LCM |
| Distira | 250 |
| CR | 400:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | SHARP |
| panel eredua | LQ043T3DX0E |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 4.3 inch |
| ebazpena | 480(RGB)×272 , WQVGA |
| bistaratzeko modua | ASV, Normally Black, Transmissive |
| eremu aktiboa | 95.04×53.856 mm |
| eskema | 105.5×67.2 mm |
| azalera | Antiglare, Hard coating (2H) |
| distira | 250 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit) |
| erantzun denbora | 30/30 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 9S1PWLEDWithout Driver |
| seinale interfazea | TTL (1 ch, 8-bit), 50 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PND |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DG02 | SHARP | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03A | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01D | SHARP | 4.3 | 480×800 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| A050FW03 V2 | AUO | 5.0 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| DLC0430LZG-8 | Other | 4.3 | 480×272 |
| HSD043I9W1-A00-R0 | HannStar | 4.3 | 480×272 |
| LB043WQ1-TD01 | LG Display | 4.3 | 480×272 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LMS430HF02 | Samsung | 4.3 | 480×272 |
| LQ043T3DX03A | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
