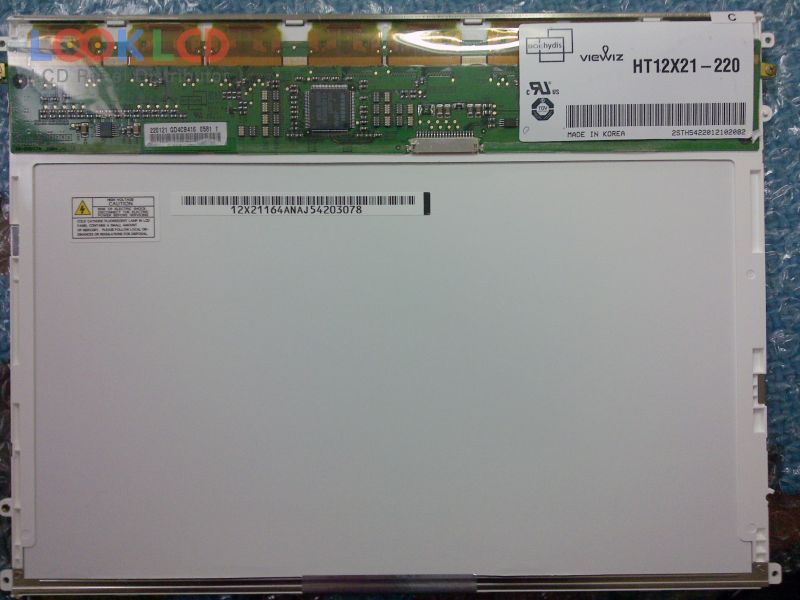

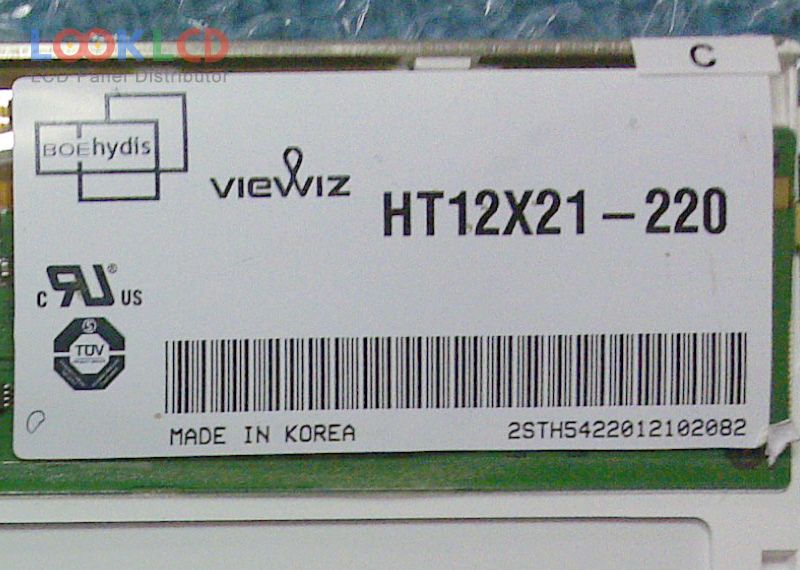

| PartZenbakia | HT12X21-220 |
| Marka | HYDIS |
| Tamaina | 12.1 |
| Aplikazio | PAD |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 180 |
| CR | 450:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | BOE HYDIS |
| panel eredua | HT12X21-220 2 Compatible model |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | AFFS, Normally Black, Transmissive |
| eremu aktiboa | 245.76×184.32 mm |
| eskema | 270×199×7.2 mm |
| azalera | Antiglare (Haze 25%), Hard coating (3H) |
| distira | 180 cd/m² (Typ.) |
| kontraste-erlazioa | 450:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193140% |
| erantzun denbora | 40 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 6-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
| AA121SN03 | Mitsubishi | 12.1 | 800×600 |
| G121XTN01.0 | AUO | 12.1 | 1024×768 |
| HT12X12-100 | HYDIS | 12.1 | 1024×768 |
| HT12X21-220 | HYDIS | 12.1 | 1024×768 |
| HT12X21-221 | HYDIS | 12.1 | 1024×768 |
| HT12X21-230 | HYDIS | 12.1 | 1024×768 |
| HT12X21-240 | HYDIS | 12.1 | 1024×768 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| N121IB-L04 | Innolux | 12.1 | 1280×800 |
| A090PAN01.0 | AUO | 9.0 | 900×1440 |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| BP070HD1-100 | BOE | 7.0 | 720×1280 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
| CLAP070WP03XG | CPT | 7.0 | 800×1280 |
| HSD100PXN1-A00-C40 | HannStar | 10.0 | 1024×768 |
| LP101WH4-SLAB | LG Display | 10.1 | 1366×768 |
| LT101MB02000 | JDI | 10.1 | 1920×1200 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
