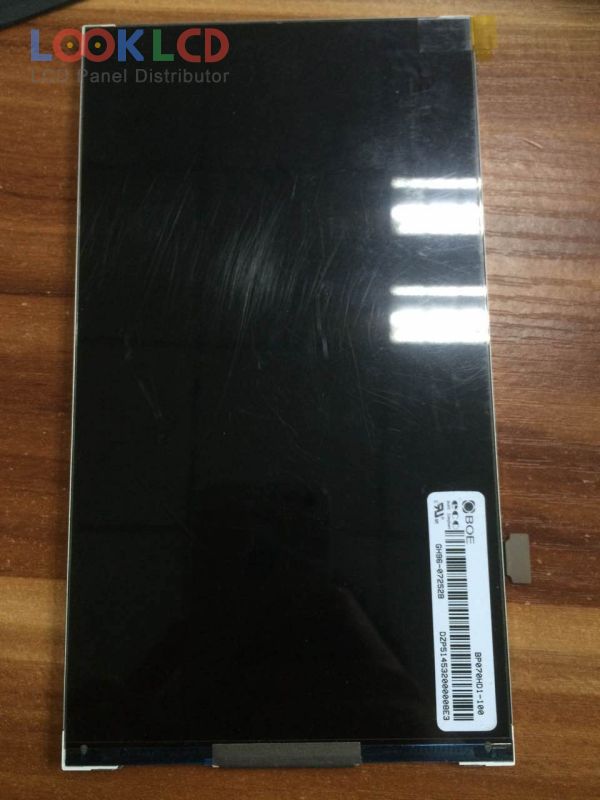

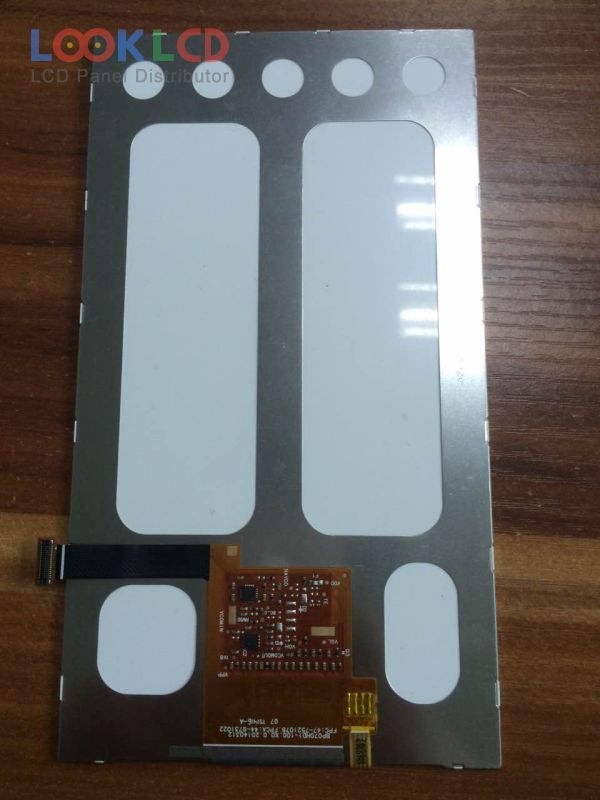

| PartZenbakia | BP070HD1-100 |
| Marka | BOE |
| Tamaina | 7.0 |
| Aplikazio | PAD |
| Ebazpena | 720×1280 |
| Konposizioa | LCM |
| Distira | 450 |
| CR | 900:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | MIPI |
| panel marka | BOE |
| panel eredua | BP070HD1-100 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 720(RGB)×1280 , WXGA |
| bistaratzeko modua | PLS, Normally Black, Transmissive |
| eremu aktiboa | 87.264×155.136 mm |
| eskema | 91.264×164.736 mm |
| azalera | Hard coating (2H) |
| distira | 450 cd/m² (Typ.) |
| kontraste-erlazioa | 900:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193155% |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 6S3PWLEDWithout Driver |
| seinale interfazea | MIPI (4 data lanes), 34 pins |
| sarrerako tentsioa | 1.8/3.3V (Typ.)(VCC/VDD) |
| aplikazio | PAD |
