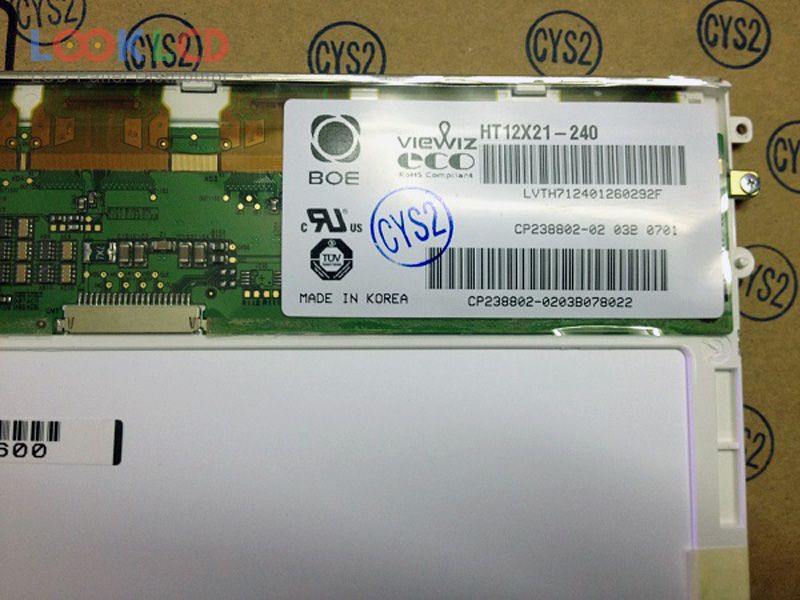

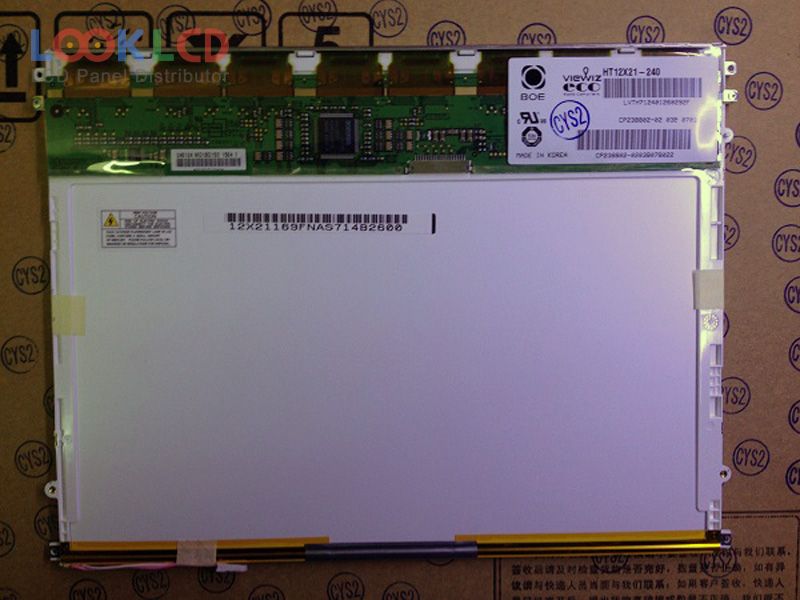

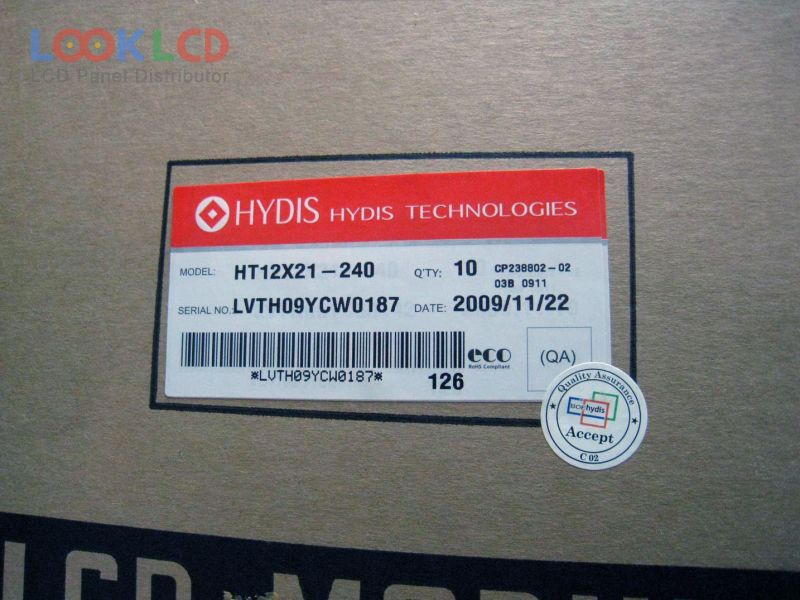

| PartZenbakia | HT12X21-240 |
| Marka | HYDIS |
| Tamaina | 12.1 |
| Aplikazio | PAD |
| Ebazpena | 1024×768 |
| Konposizioa | LCM |
| Distira | 180 |
| CR | 450:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | LVDS |
| panel marka | BOE HYDIS |
| panel eredua | HT12X21-240 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 12.1 inch |
| ebazpena | 1024(RGB)×768 , XGA |
| bistaratzeko modua | AFFS, Normally Black, Transmissive |
| eremu aktiboa | 245.76×184.32 mm |
| eskema | 270×199×7 mm |
| azalera | Glare (Haze 0%), Hard coating (2H) |
| distira | 180 cd/m² (Typ.) |
| kontraste-erlazioa | 450:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193140% |
| erantzun denbora | 40 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | LVDS (1 ch, 6-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
