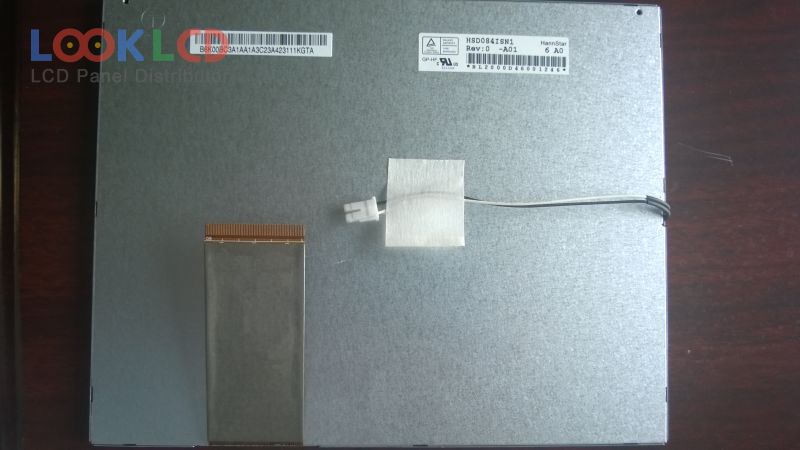

| PartZenbakia | HSD084ISN1-A01 |
| Marka | HannStar |
| Tamaina | 8.4 |
| Aplikazio | DPF |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 380 |
| CR | 600:1 |
| Koloreak | 262K/16.2M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | HannStar |
| panel eredua | HSD084ISN1-A01 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 8.4 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 170.4×127.8 mm |
| eskema | 189.7×149.4×5.3 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 380 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.2M (6-bit / 6-bit + FRC) |
| erantzun denbora | 2/6 (Typ.)(Tr/Td) |
| ikuspegi angelua | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 3S9PWLEDWithout Driver |
| seinale interfazea | TTL (1 ch, 6/8-bit), 60 pins |
| sarrerako tentsioa | 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | DPF |
| AA084VC05 | Mitsubishi | 8.4 | 640×480 |
| AA084VD02 | Mitsubishi | 8.4 | 640×480 |
| AA084XB01 | Mitsubishi | 8.4 | 1024×768 |
| AM-800600M3TNQW-01H-F | AMPIRE | 8.4 | 800×600 |
| HSD084ISN1-A01 | HannStar | 8.4 | 800×600 |
| KCB084SV1AC-G40 | Kyocera | 8.4 | 800×600 |
| LQ084V1DG21 | SHARP | 8.4 | 640×480 |
| LQ9D03B | SHARP | 8.4 | 640×480 |
| NL8060BC21-03 | NLT | 8.4 | 800×600 |
| NL8060BC21-11C | NLT | 8.4 | 800×600 |
| AT056TN52 V.3 | Innolux | 5.6 | 640×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT102TN03 V.1 | Innolux | 10.2 | 800×480 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| EK08009-70235 | Other | 8.0 | 800×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| LB084S02-TD01 | LG Display | 8.4 | 800×600 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| PM102WX1 | E Ink | 10.2 | 800×480 |
