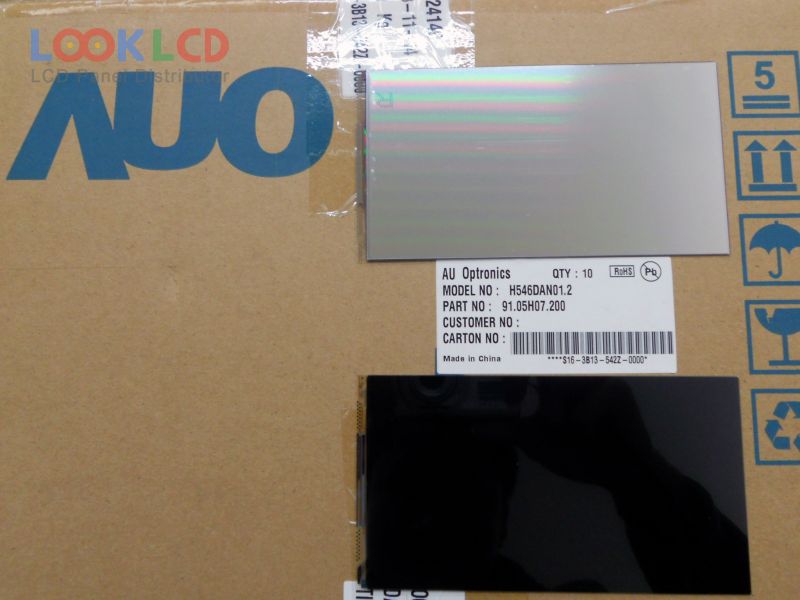

| PartZenbakia | H546DAN01.2 |
| Marka | AUO |
| Tamaina | 5.5 |
| Aplikazio | MPH |
| Ebazpena | 1080×1920 |
| Konposizioa | CELL |
| Distira | 0 |
| CR | 1000:1 |
| Koloreak | 16.7M |
| Atzeko argia | No B/L |
| Interfazea | |
| panel marka | AUO |
| panel eredua | H546DAN01.2 2 Compatible model |
| panel mota | LTPS TFT-LCD , CELL |
| panelaren tamaina | 5.5 inch |
| ebazpena | 1080(RGB)×1920 , FHD |
| bistaratzeko modua | AHVA, Normally Black, Transmissive |
| eremu aktiboa | 68.04×120.96 mm |
| eskema | 70.44×127.61×0.636 mm |
| azalera | Hard coating |
| beiraren sakonera | 0.18+0.18 mm |
| transmisibitatea | 4.2% (Typ.)(with APCF) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193170% |
| erantzun denbora | 30 (Typ.)(Tr+Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| gidariaren ic | COG Built-in NT35596 |
| sarrerako tentsioa | 1.8/2.8V (Typ.)(VDDI/VCI) |
| aplikazio | MPH |
| CM546B1-002 | CSOT | 5.5 | 1080×1920 |
| H546DAN01.2 | AUO | 5.5 | 1080×1920 |
| H546DLB01.1 | AUO | 5.5 | 1080×1920 |
| LH550WF1-SD01 | LG Display | 5.5 | 1080×1920 |
| LH550WF4-SJ11 | LG Display | 5.5 | 1080×1920 |
| LM6Q35 | SHARP | 5.5 | 320×240 |
| LPM055A138A | JDI | 5.5 | 1440×2560 |
| LS055T1SX01 | SHARP | 5.5 | 1080×1920 |
| TM055JVZG02 | Tianma | 5.5 | 720×1280 |
| TM055XDHP10 | Tianma | 5.5 | 540×960 |
| AMCB004 | Samsung | 2.4 | 240×320 |
| AMCE002 | Samsung | 2.4 | 240×320 |
| LH320WV3-SH02 | LG Display | 3.2 | 480×800 |
| LH350WS1-SH02 | LG Display | 3.5 | 640×960 |
| LH520WF1-SD01 | LG Display | 5.2 | 1080×1920 |
| LQ024B7UD01 | SHARP | 2.4 | 160×240 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| LS050T1SX12(K) | SHARP | 5.0 | 1080×1920 |
| LS063K3SX54 | SHARP | 6.3 | 720×1280 |
| TM045XDZP08 | Tianma | 4.5 | 540×960 |
