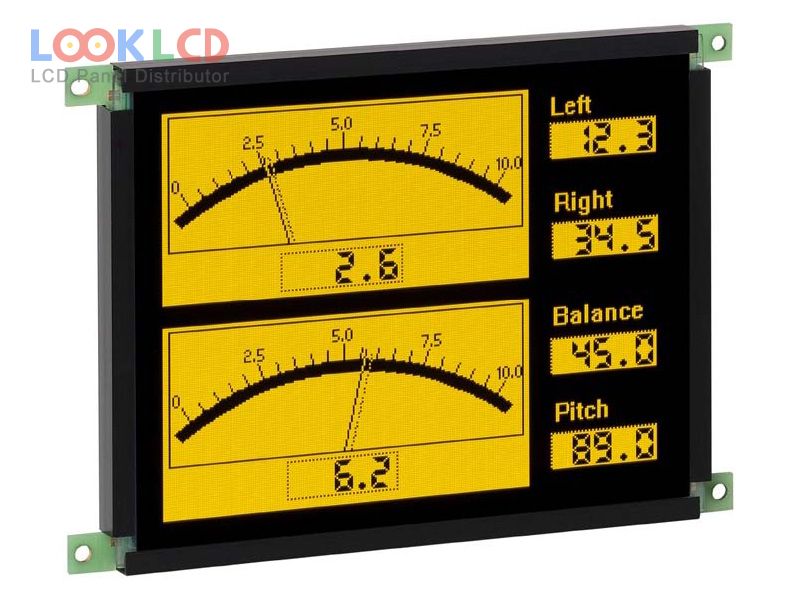

EL320.240.36

EL320.240.36
EL320.240.36
EL320.240.36 thumb EL320.240.36 thumb
Marka
Lumineq
Tamaina
5.7
Aplikazio
IA
Ebazpena
320×240
Konposizioa
EL
Distira
50
CR
50:1
Koloreak
Mono(Yellow)
Atzeko argia
self
Interfazea
Parallel Data
In Stock
24
Zehaztapenak

PartZenbakia EL320.240.36
MarkaLumineq
Tamaina5.7
AplikazioIA
Ebazpena320×240
KonposizioaEL
Distira50
CR50:1
KoloreakMono(Yellow)
Atzeko argiaself
InterfazeaParallel Data
panel markaLumineq
panel ereduaEL320.240.36
panel mota EL , EL
panelaren tamaina5.7 inch
ebazpena320×240 , QVGA
eremu aktiboa115.1×86.3 mm
eskema148.1×104.7 mm
azalera
distira50 cd/m² (Typ.)
kontraste-erlazioa50 : 1 (Typ.)
bistaratzeko koloreakMono(Yellow) (1-bit)
ikuspegi angelua89/89/89/89 (Typ.)(L/R/U/D)
maiztasuna120Hz
seinale interfazeaParallel Data (1ch, 4-bit), 20 pins
sarrerako tentsioa5/12V (Typ.)(VL/VH)
aplikazioIA
Familia Eredua
EL320.240.36 AGL Lumineq 5.7 320×240
EL320.240.36 ET Lumineq 5.7 320×240
EL320.240.36 ET CC Lumineq 5.7 320×240
EL320.240.36 HB Lumineq 5.7 320×240
EL320.240.36 HB NE PLANAR 5.7 320×240
EL320.240.36 HB SE PLANAR 5.7 320×240
EL320.240.36 IN Lumineq 5.7 320×240
EL320.240.36 LK Lumineq 5.7 320×240
EL320.256-FD6 Lumineq 4.8 320×256
EL320.256-FD7 Lumineq 4.8 320×256
