PLANAR EL320.240.36 HB SE fitxa teknikoa, zehaztapena, stockak, aplikazioa www.looklcd-eu.com
LookLCD LookLCD

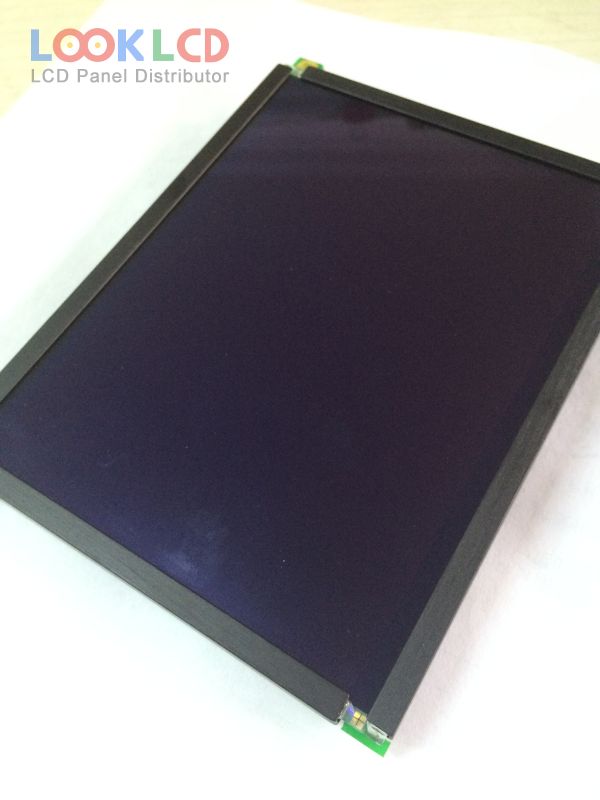

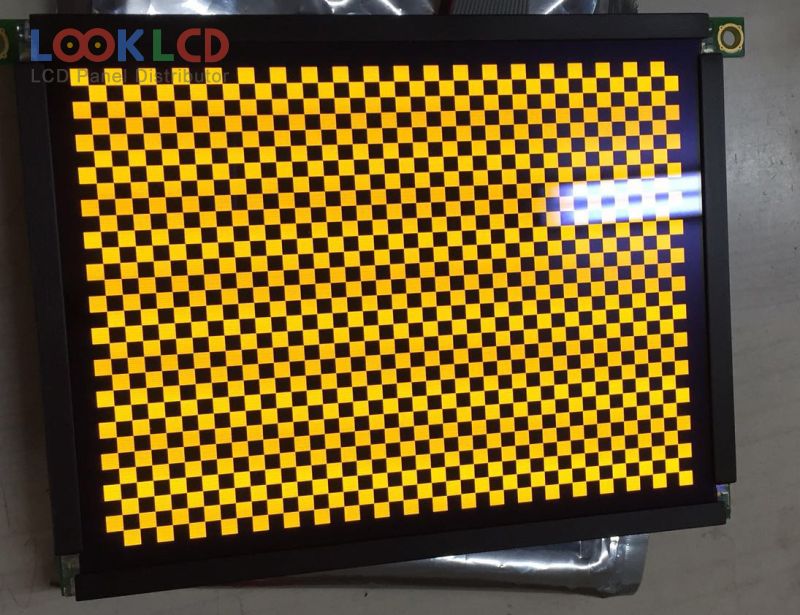

EL320.240.36 HB SE

EL320.240.36 HB SE
EL320.240.36 HB SE
EL320.240.36 HB SE
EL320.240.36 HB SE thumb EL320.240.36 HB SE thumb EL320.240.36 HB SE thumb
Marka
PLANAR
Tamaina
5.7
Aplikazio
IA
Ebazpena
320×240
Konposizioa
EL
Distira
150
CR
90:1
Koloreak
Mono(Yellow)
Atzeko argia
self
Interfazea
Parallel Data
In Stock
200
Zehaztapenak

PartZenbakia EL320.240.36 HB SE
MarkaPLANAR
Tamaina5.7
AplikazioIA
Ebazpena320×240
KonposizioaEL
Distira150
CR90:1
KoloreakMono(Yellow)
Atzeko argiaself
InterfazeaParallel Data
panel markaPLANAR
panel ereduaEL320.240.36 HB SE
panel mota EL , EL
panelaren tamaina5.7 inch
ebazpena320×240 , QVGA
eremu aktiboa115.1×86.3 mm
eskema148.1×104.7 mm
azalera
distira150 cd/m² (Typ.)
kontraste-erlazioa90 : 1 (Typ.)
bistaratzeko koloreakMono(Yellow) (1-bit)
ikuspegi angelua89/89/89/89 (Typ.)(L/R/U/D)
maiztasuna120Hz
seinale interfazeaParallel Data (1ch, 4-bit), 26 pins
sarrerako tentsioa5/12V (Typ.)(VL/VH)
aplikazioIA
Familia Eredua
EL320.240-FA3 CC Lumineq 4.9 320×240
EL320.240.36 Lumineq 5.7 320×240
EL320.240.36 ET CC Lumineq 5.7 320×240
EL320.240.36 HB Lumineq 5.7 320×240
EL320.240.36 HB NE PLANAR 5.7 320×240
EL320.240.36 HB NE CC PLANAR 5.7 320×240
EL320.240.36 HB SE PLANAR 5.7 320×240
EL320.240.36 IN Lumineq 5.7 320×240
EL320.240.36 IN AG Lumineq 5.7 320×240
EL320.240.36 LK Lumineq 5.7 320×240
