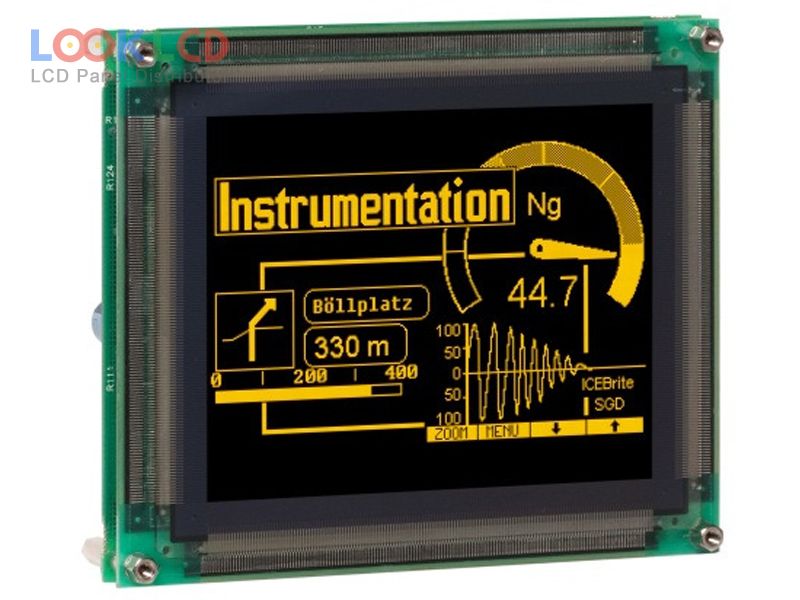

EL320.256-FD6

EL320.256-FD6
EL320.256-FD6
EL320.256-FD6 thumb EL320.256-FD6 thumb
Marka
Lumineq
Tamaina
4.8
Aplikazio
IA
Ebazpena
320×256
Konposizioa
EL
Distira
25
CR
12:1
Koloreak
Mono(Yellow)
Atzeko argia
self
Interfazea
In Stock
13004
Zehaztapenak

PartZenbakia EL320.256-FD6
MarkaLumineq
Tamaina4.8
AplikazioIA
Ebazpena320×256
KonposizioaEL
Distira25
CR12:1
KoloreakMono(Yellow)
Atzeko argiaself
Interfazea
panel markaLumineq
panel ereduaEL320.256-FD6
panel mota EL , EL
panelaren tamaina4.8 inch
ebazpena320×256
eremu aktiboa95.9×76.7 mm
eskema130×110 mm
azalera
distira25 cd/m² (Typ.)
kontraste-erlazioa12 : 1 (Typ.)
bistaratzeko koloreakMono(Yellow) (1-bit)
ikuspegi angelua89/89/89/89 (Typ.)(L/R/U/D)
maiztasuna60Hz
sarrerako tentsioa5/(10.8~30)V (Typ.)(VCC1/VCC2)
aplikazioIA
