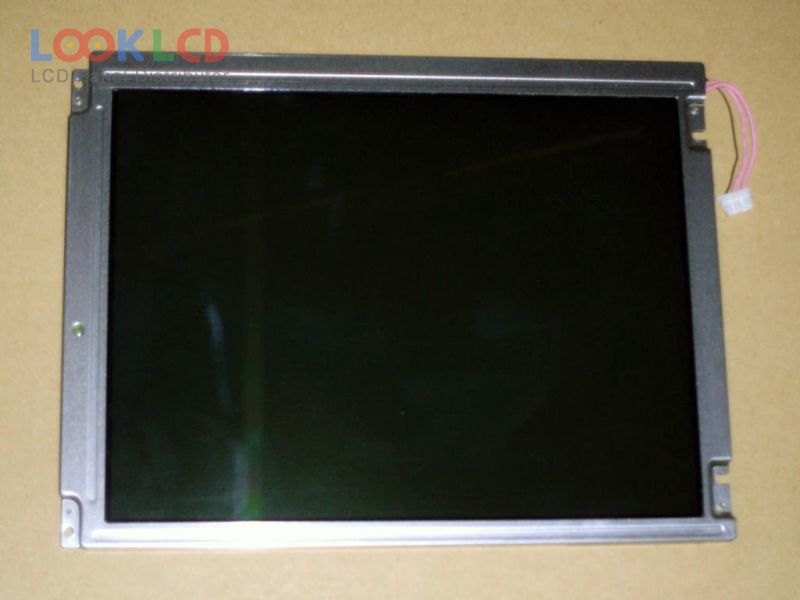

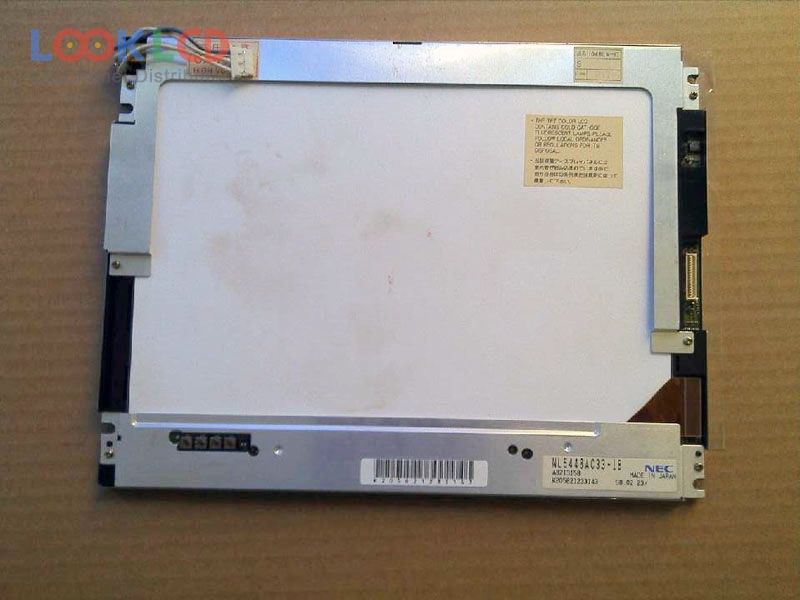

| PartZenbakia | NL6448AC33-18 |
| Marka | NLT |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 640×480 |
| Konposizioa | LCM |
| Distira | 200 |
| CR | 150:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL6448AC33-18 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 640(RGB)×480 , VGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 243×185.1×11 mm |
| azalera | Clear, Antireflection |
| distira | 200 cd/m² (Typ.) |
| kontraste-erlazioa | 150:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193143% |
| erantzun denbora | 40 (Max.)(Tr) |
| ikuspegi angelua | 45/45/30/20 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLEmbedded (Inverter) |
| seinale interfazea | CMOS (1 ch, 6-bit), 31 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VCC) |
| aplikazio | IA |
