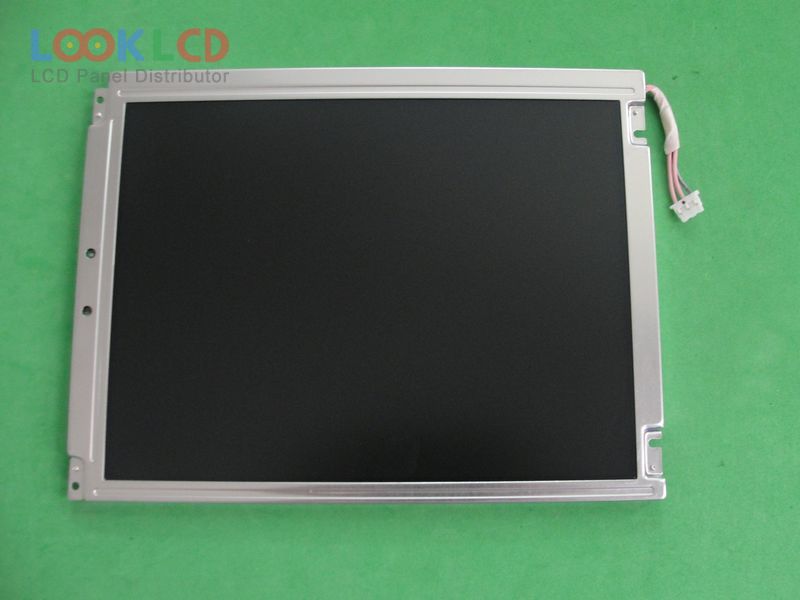

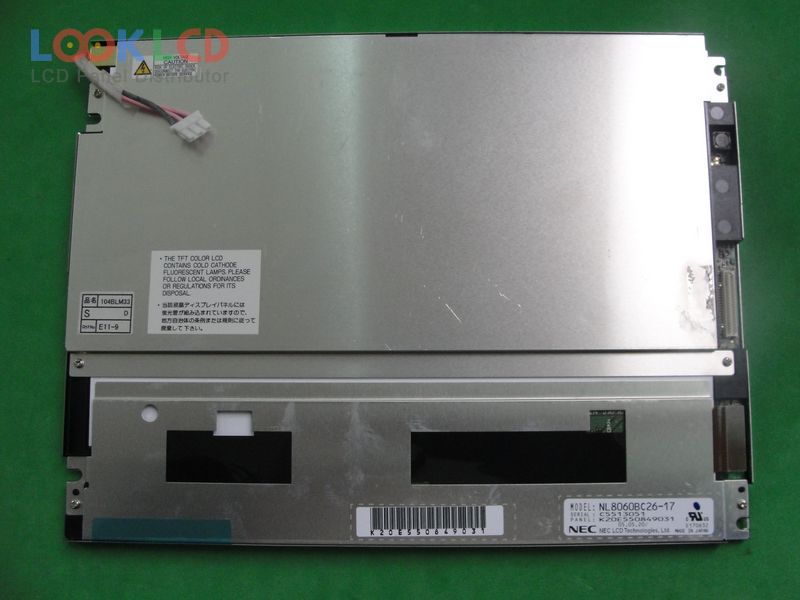

| PartZenbakia | NL8060BC26-17 |
| Marka | NLT |
| Tamaina | 10.4 |
| Aplikazio | IA |
| Ebazpena | 800×600 |
| Konposizioa | LCM |
| Distira | 280 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | NEC |
| panel eredua | NL8060BC26-17 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.4 inch |
| ebazpena | 800(RGB)×600 , SVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 211.2×158.4 mm |
| eskema | 243×185.1 mm |
| azalera | Antireflection |
| distira | 280 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193143% |
| erantzun denbora | 15/65 (Typ.)(Tr/Td) |
| ikuspegi angelua | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 2 pcsCCFLWithout Driver |
| seinale interfazea | CMOS (1 ch, 6-bit), 41 pins |
| sarrerako tentsioa | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| aplikazio | IA |
| NL8060AC26-04 | NLT | 10.4 | 800×600 |
| NL8060AC26-52D | NLT | 10.4 | 800×600 |
| NL8060BC21-03 | NLT | 8.4 | 800×600 |
| NL8060BC26-11 | NLT | 10.4 | 800×600 |
| NL8060BC26-13 | NLT | 10.4 | 800×600 |
| NL8060BC26-27 | NLT | 10.4 | 800×600 |
| NL8060BC26-30C | NLT | 10.4 | 800×600 |
| NL8060BC26-30D | NLT | 10.4 | 800×600 |
| NL8060BC31-27 | NLT | 12.1 | 800×600 |
| NL8060BC31-47D | NLT | 12.1 | 800×600 |
| 70WVW5A | SII | 7.0 | 800×480 |
| A050BTS30R0 | Aptus | 5.0 | 480×480 |
| DLC0570CDG-1 | Other | 5.7 | 320×240 |
| DLC1040ABG-2 | Other | 10.4 | 800×600 |
| LB121S03-TL04 | LG Display | 12.1 | 800×600 |
| LM-CA53-22NTK | SANYO | 9.4 | 640×480 |
| LM64P30 | SHARP | 9.4 | 640×480 |
| LTA084C274F | TOSHIBA | 8.4 | 800×600 |
| TM100SV-A01-01 | SANYO | 10.0 | 800×600 |
| UG-2896GDEAF11 | WiseChip | 1.3 | 128×96 |
