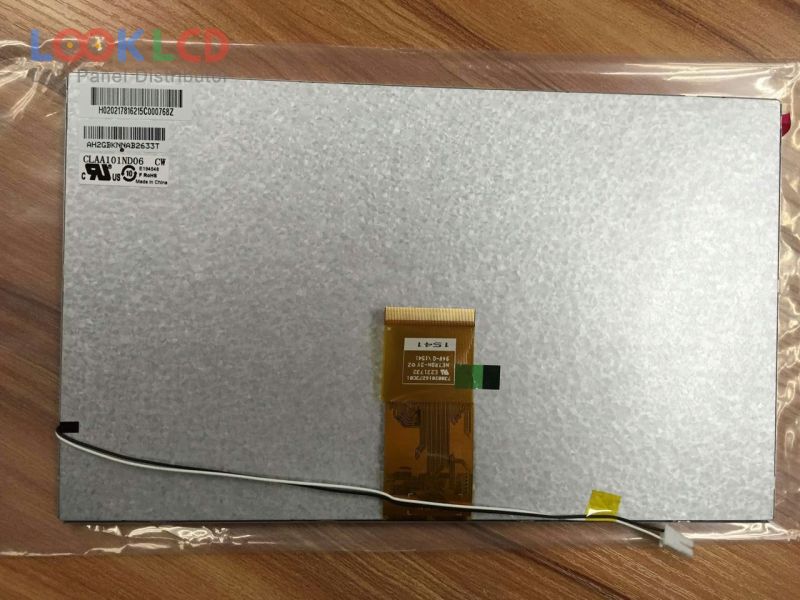

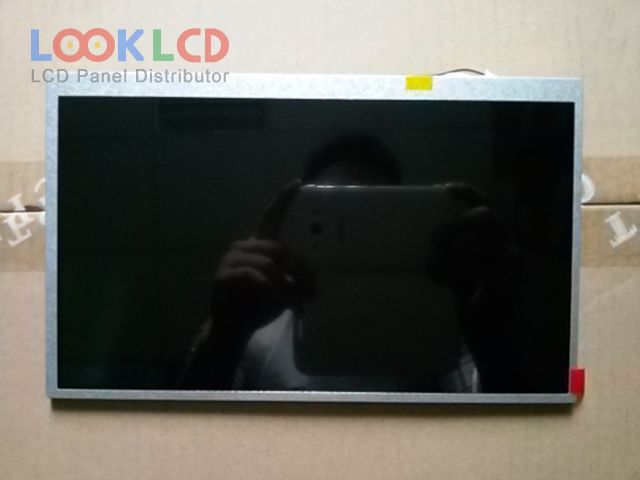

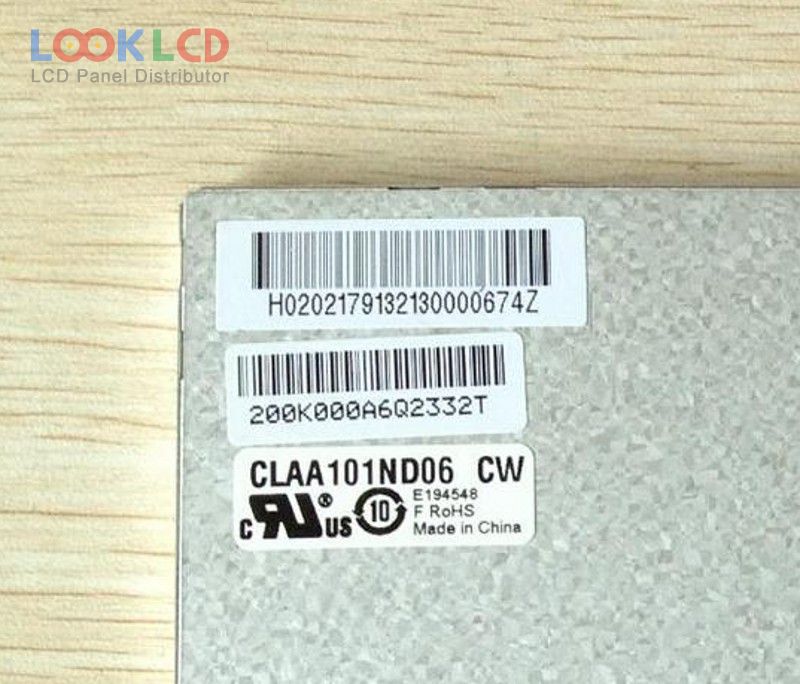

| PartZenbakia | CLAA101ND06CW |
| Marka | CPT |
| Tamaina | 10.1 |
| Aplikazio | CNS |
| Ebazpena | 1024×600 |
| Konposizioa | LCM |
| Distira | 500 |
| CR | 600:1 |
| Koloreak | 262K/16.2M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | CPT |
| panel eredua | CLAA101ND06CW |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1024(RGB)×600 , WSVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 222.72×125.28 mm |
| eskema | 235×143×4.8 mm |
| azalera | Antiglare |
| distira | 500 cd/m² (Typ.) |
| kontraste-erlazioa | 600:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 6S7PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 60 pins |
| sarrerako tentsioa | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikazio | CNS |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA102NA01CW | CPT | 10.2 | 1024×600 |
| CLAA102NA0ACG | CPT | 10.2 | 1024×600 |
| CLAA102NB01XV | CPT | 10.2 | 1024×600 |
| AC070MD01 | Mitsubishi | 7.0 | 800×480 |
| AT102TN03 V.3 | Innolux | 10.2 | 800×480 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| L5F30947T0A | Epson | 6.5 | 800×480 |
| LB048Q01-TD01 | LG Display | 4.8 | 240×257 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LQ065Y5DG03 | SHARP | 6.5 | 800×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
