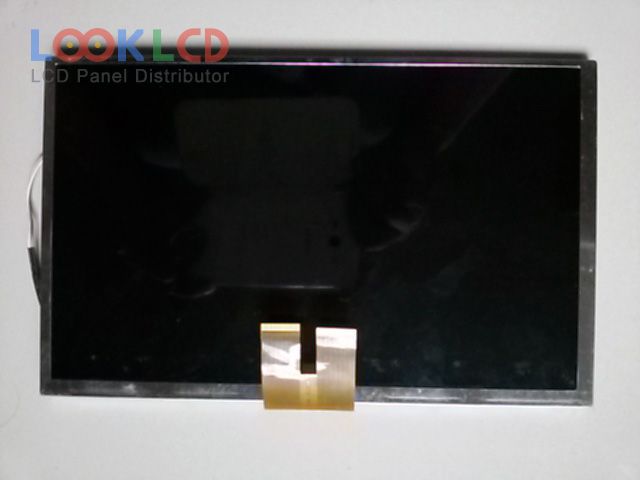

| PartZenbakia | PM100WX2 |
| Marka | E Ink |
| Tamaina | 10.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 400:1 |
| Koloreak | 262K |
| Atzeko argia | CCFL |
| Interfazea | TTL |
| panel marka | PVI |
| panel eredua | PM100WX2 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 216×129.6 mm |
| eskema | 232×144.3×6.5 mm |
| azalera | Antiglare |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 15/25 (Typ.)(Tr/Td) |
| ikuspegi angelua | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 60 pins |
| sarrerako tentsioa | 3.3/3.3/9.5/27.0/-10.0V (Typ.)(VCC/VDD/VDD2/VGH/VEE) |
| aplikazio | CNS |
