| PartZenbakia | A070VW05 V0 |
| Marka | AUO |
| Tamaina | 7.0 |
| Aplikazio | CNS |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 375 |
| CR | 500:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AUO |

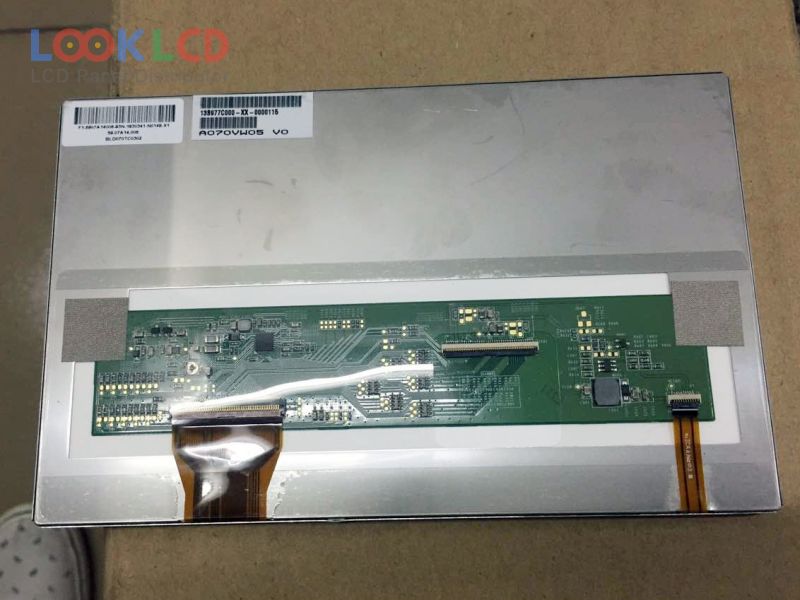

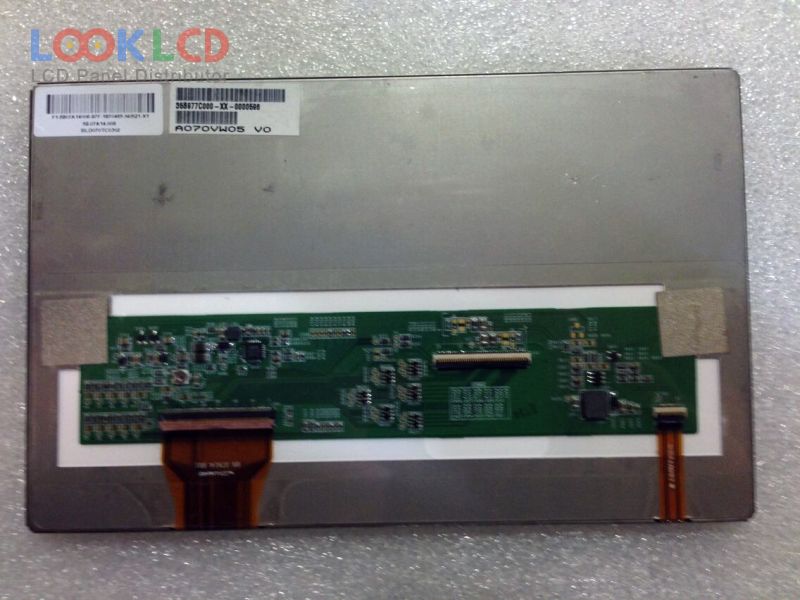

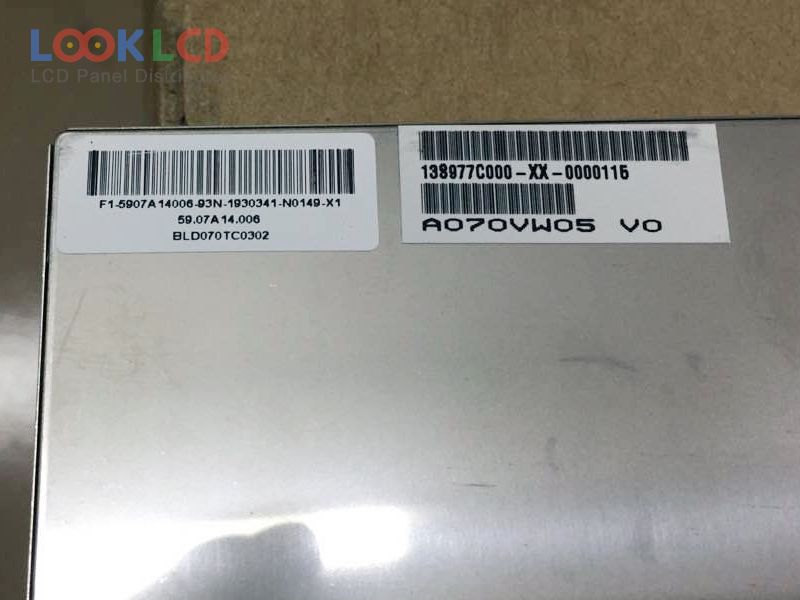

| panel eredua | A070VW05 V0 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 165×104×5.77 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 375 cd/m² (Typ.) |
| kontraste-erlazioa | 500:1 (Typ.) |
| bistaratzeko koloreak | 16.7M (8-bit), CIE193150% |
| erantzun denbora | 12/18 (Typ.)(Tr/Td) |
| ikuspegi angelua | 70/70/45/70 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | Parallel RGB (1 ch, 8-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.)(VCC) |
| rohs: | |
| aplikazio | CNS |
