B101UAN01.C

B101UAN01.C
B101UAN01.C
B101UAN01.C thumb B101UAN01.C thumb
Marka
AUO
Tamaina
10.1
Aplikazio
PAD
Ebazpena
1920×1200
Konposizioa
LCM
Distira
400
CR
800:1
Koloreak
16.7M
Atzeko argia
WLED
Interfazea
eDP
In Stock
5200
Zehaztapenak

PartZenbakia B101UAN01.C
MarkaAUO
Tamaina10.1
AplikazioPAD
Ebazpena1920×1200
KonposizioaLCM
Distira400
CR800:1
Koloreak16.7M
Atzeko argiaWLED
InterfazeaeDP
panel markaAUO

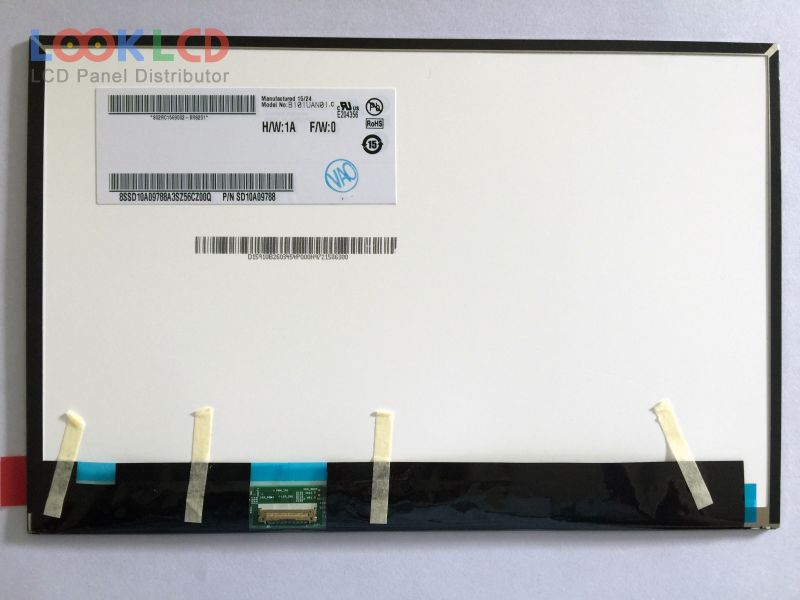

panel ereduaB101UAN01.C
panel mota a-Si TFT-LCD , LCM
panelaren tamaina10.1 inch
ebazpena1920(RGB)×1200 , WUXGA
bistaratzeko moduaAHVA, Normally Black, Transmissive
eremu aktiboa216.81×135.5 mm
eskema229.71×150.3×4.6 mm
azaleraGlare (Haze 0%)
distira400 cd/m² (Typ.)
kontraste-erlazioa800:1 (Typ.)
bistaratzeko koloreak16.7M (6-bit + Hi-FRC), CIE193150%
erantzun denbora15/10 (Typ.)(Tr/Td)
ikuspegi angelua85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
maiztasuna60Hz
lanpara motaWLEDEmbedded (LED Driver)

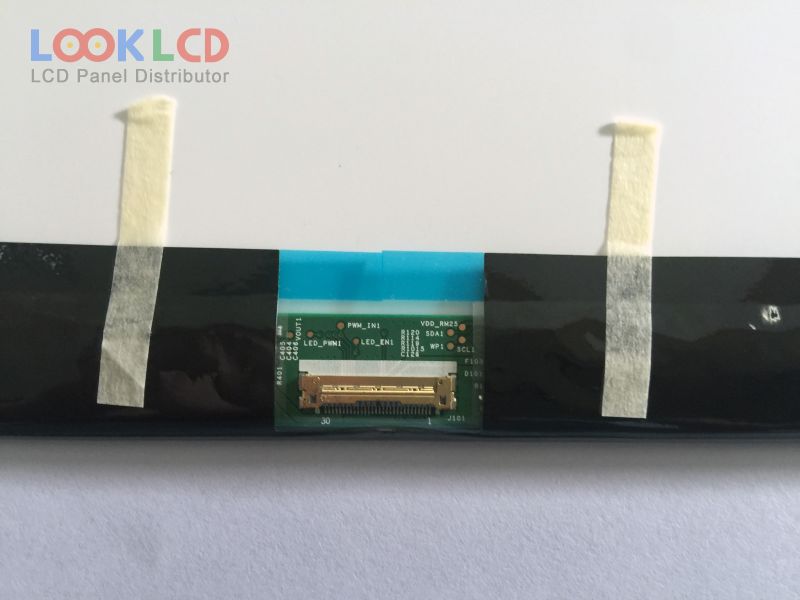

seinale interfazeaeDP (2 Lanes), 30 pins
sarrerako tentsioa3.3V (Typ.)
aplikazioPAD
Familia Eredua
B101UAN01.1 AUO 10.1 1920×1200
B101UAN01.7 HW0A AUO 10.1 1920×1200
B101UAN01.7 HW2A AUO 10.1 1920×1200
B101UAN01.9 AUO 10.1 1920×1200
B101UAN01.C AUO 10.1 1920×1200
B101UAN01.E AUO 10.1 1920×1200
B101UAN02.1 AUO 10.1 1920×1200
B101UAN07.0 AUO 10.1 1200×1920
B101UAN07.2 AUO 10.1 1200×1920
B101UAT02.1 AUO 10.1 1920×1200
