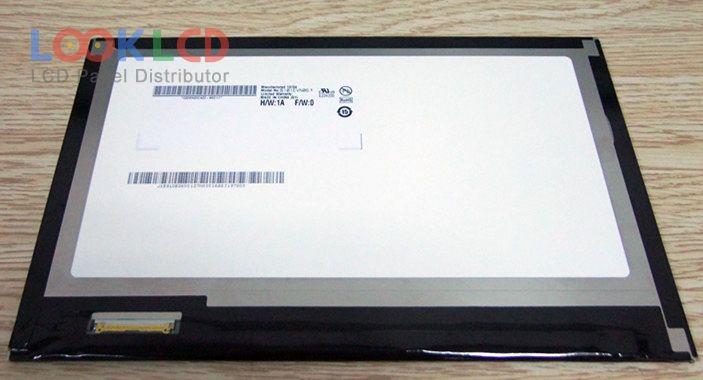

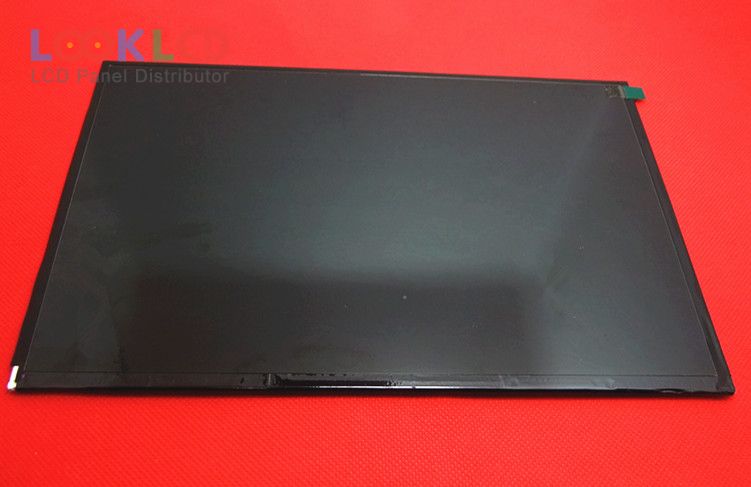

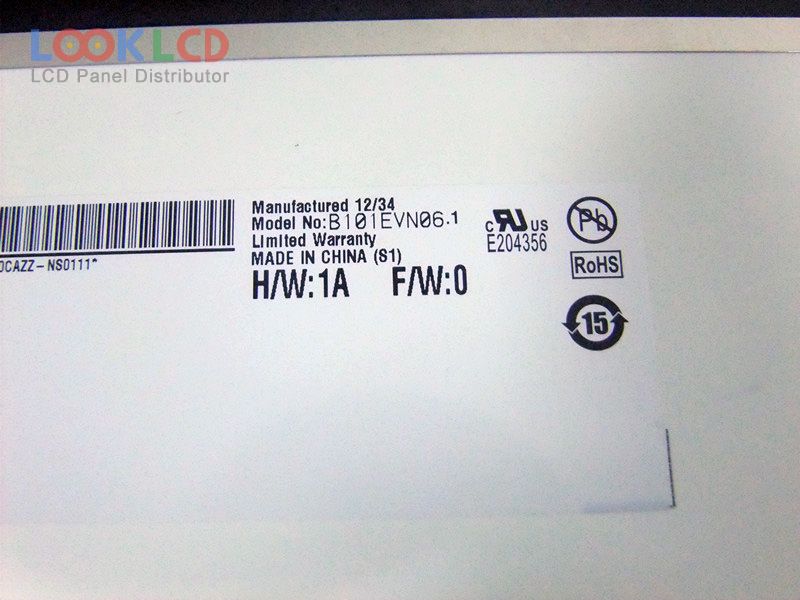

| PartZenbakia | B101EVN06.1 |
| Marka | AUO |
| Tamaina | 10.1 |
| Aplikazio | PAD |
| Ebazpena | 1280×800 |
| Konposizioa | LCM |
| Distira | 350 |
| CR | 1300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | AUO |
| panel eredua | B101EVN06.1 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 10.1 inch |
| ebazpena | 1280(RGB)×800 , WXGA |
| bistaratzeko modua | MVA, Normally Black, Transmissive |
| eremu aktiboa | 216.96×135.6 mm |
| eskema | 229.46×149.2×4.4 mm |
| azalera | Hard coating (3H), Reflection 1.5% (Max.) |
| distira | 350 cd/m² (Typ.) |
| kontraste-erlazioa | 1300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit), CIE193145% |
| erantzun denbora | 25 (Typ.)(Tr+Td) |
| ikuspegi angelua | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 10S4PWLEDWithout Driver |
| seinale interfazea | LVDS (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | PAD |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| B101EAN01.4 | AUO | 10.1 | 1280×800 |
| B101EAN01.5 | AUO | 10.1 | 1280×800 |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| B101EVN06.1 | AUO | 10.1 | 1280×800 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| B101EW01 V1 | AUO | 10.1 | 1280×720 |
| B101EW04 V0 | AUO | 10.1 | 1280×800 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| B101EW05 V1 | AUO | 10.1 | 1280×800 |
| CLAA080WQ08 XN | CPT | 8.0 | 800×1280 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HX104X02-100 | HYDIS | 10.4 | 1024×768 |
| LD089WX1-SL03 | LG Display | 8.9 | 1280×768 |
| LP125WH2-SPT1 | LG Display | 12.5 | 1366×768 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| LTN121AP05-302 | Samsung | 12.1 | 1280×800 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| PJ101IA-01A | Innolux | 10.1 | 1280×800 |
