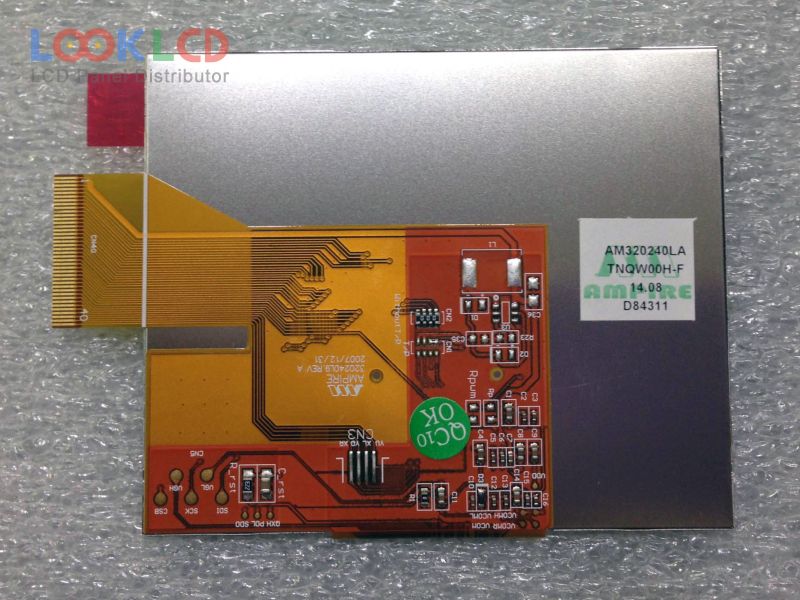

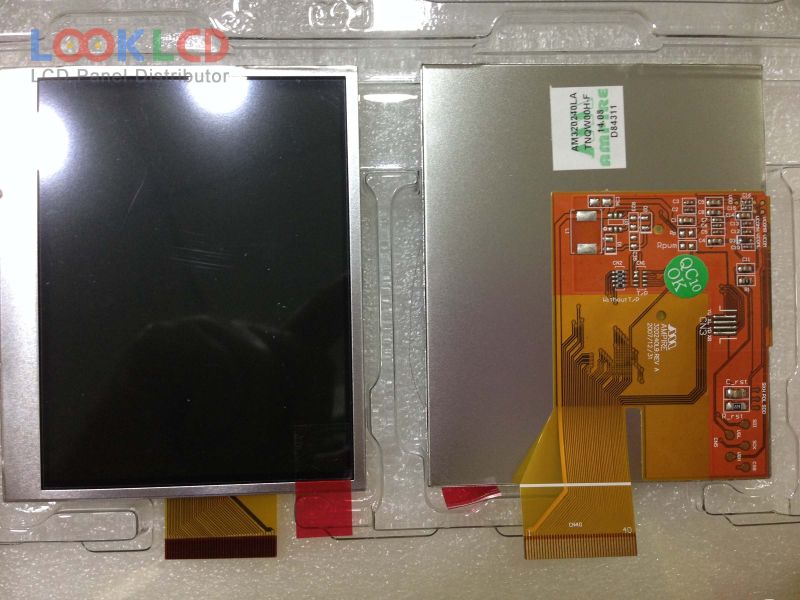

| PartZenbakia | AM-320240LATNQW-T00H-F |
| Marka | AMPIRE |
| Tamaina | 3.5 |
| Aplikazio | HHP |
| Ebazpena | 320×240 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 300:1 |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | TTL |
| panel marka | AMPIRE |
| panel eredua | AM-320240LATNQW-T00H-F |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 3.5 inch |
| ebazpena | 320(RGB)×240 , QVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 70.08×52.56 mm |
| eskema | 77.8×66×5.8 mm |
| azalera | Hard coating (3H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 300:1 (Typ.) |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | 50 (Typ.)(Tr+Td) |
| ikuspegi angelua | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | 3S2PWLEDWithout Driver |
| seinale interfazea | Parallel RGB (1 ch, 6-bit), 40 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | HHP |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| AM-320240LATNQW-00H-F | AMPIRE | 3.5 | 320×240 |
| AM-320240LATNQW-T00H-F | AMPIRE | 3.5 | 320×240 |
| AM-320480-035BT | Other | 3.5 | 320×480 |
| AMS347FF02 | Samsung | 3.5 | 360×640 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| 30WQF0H | SII | 3.0 | 240×400 |
| COM24H2N62XLC | ORTUSTECH | 2.4 | 240×320 |
| LH300Q01-ED01 | LG Display | 3.0 | 320×240 |
| LQ030B7DD01 | SHARP | 3.0 | 320×320 |
| LQ039Q2DS51 | SHARP | 3.9 | 320×240 |
| LQ040Y3DX80B | SHARP | 4.0 | 480×800 |
| LS029B4DN01 | SHARP | 2.9 | 240×456 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
| TM030LDHT1 | Tianma | 3.0 | 240×400 |
| TM035NDH04 | Tianma | 3.5 | 272×480 |
