| PartZenbakia | AM-320480-035BT |
| Marka | Other |
| Tamaina | 3.5 |
| Aplikazio | HHP |
| Ebazpena | 320×480 |
| Konposizioa | LCM |
| Distira | |
| CR | |
| Koloreak | 262K |
| Atzeko argia | WLED |
| Interfazea | CPU |
| panel marka | Amson |

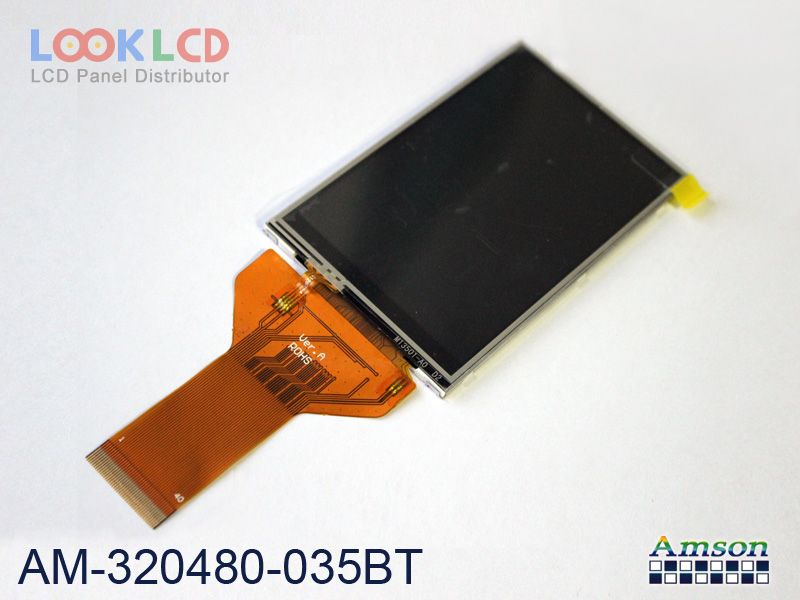

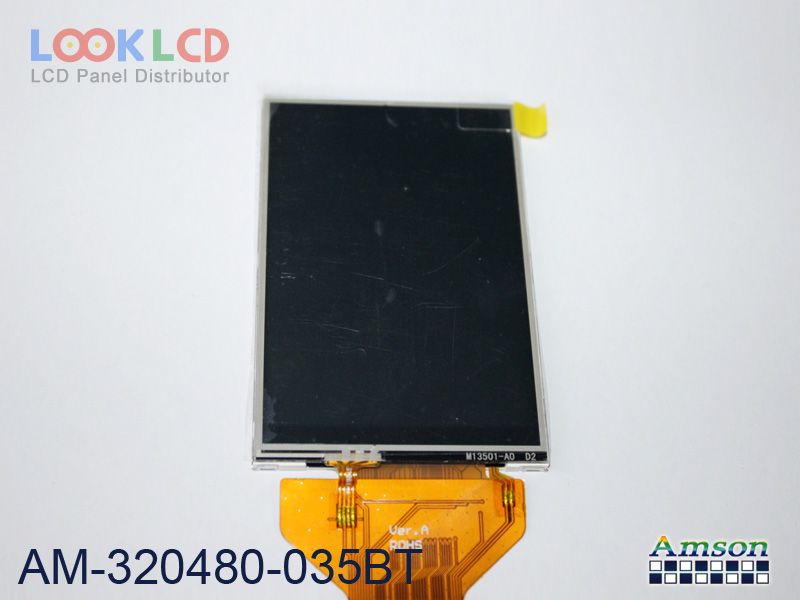

| panel eredua | AM-320480-035BT |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 3.5 inch |
| ebazpena | 320(RGB)×480 , HVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 48.96×73.44 mm |
| eskema | 55.66×85.04×3.7 mm |
| azalera | |
| distira | |
| kontraste-erlazioa | |
| bistaratzeko koloreak | 262K (6-bit) |
| erantzun denbora | |
| ikuspegi angelua | |
| lanpara mota | WLEDWithout Driver |
| seinale interfazea | 8/16-bit 8080 parallel, 40 pins |
| sarrerako tentsioa | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| aplikazio | HHP |
