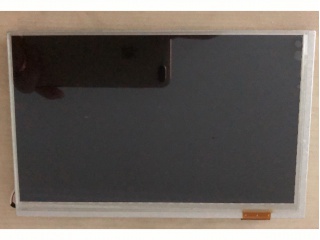

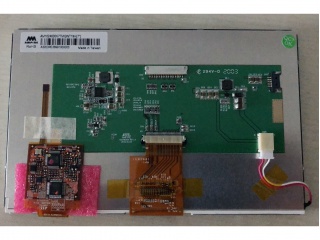

| PartZenbakia | AM-1024600K7TMQW-T19H |
| Marka | AMPIRE |
| Tamaina | 7.0 |
| Aplikazio | Industrial |
| Ebazpena | 1024×600 |
| Konposizioa | a-Si TFT-LCD , LCM |
| Distira | |
| CR | 700:1 |
| Koloreak | 16.7M |
| Atzeko argia | WLED |
| Interfazea | |
| marka | AMPIRE |
| diagonalaren tamaina | 7.0 inch |
| pixel formatua | 1024(RGB)×600 [WSVGA] 169PPI |
| eremu aktiboa | 153.6(H)×90(V) mm |
| luminantzia | 425 cd/m² (Typ.) |
| ikusi norabidea | 6 o'clock |
| ikuspegi angelua | 75/75/70/75 (Typ.)(CR≥10) |
| euskarria kolorea | 16.7M |
| pisua | TBD |
| fotograma-tasa | 60Hz |
| eredua | AM-1024600K7TMQW-T19H |
| mota | a-Si TFT-LCD , LCM |
| konfigurazioa | RGB Vertical Stripe |
| eskema dim. | 165.5(H)×104.44(V) ×10.81(D) mm |
| kontraste-erlazioa | 700:1 (Typ.) (TM) |
| erantzun denbora | 20/20 (Typ.)(Tr/Td) |
| funtzionamendu modua | TN, Normally White, Transmissive |
| argi iturria | WLED [5S3P] , 30K hours , With LED Driver |
| entzat diseinatua | Industrial |
| ukipen-panela | PCAP |
