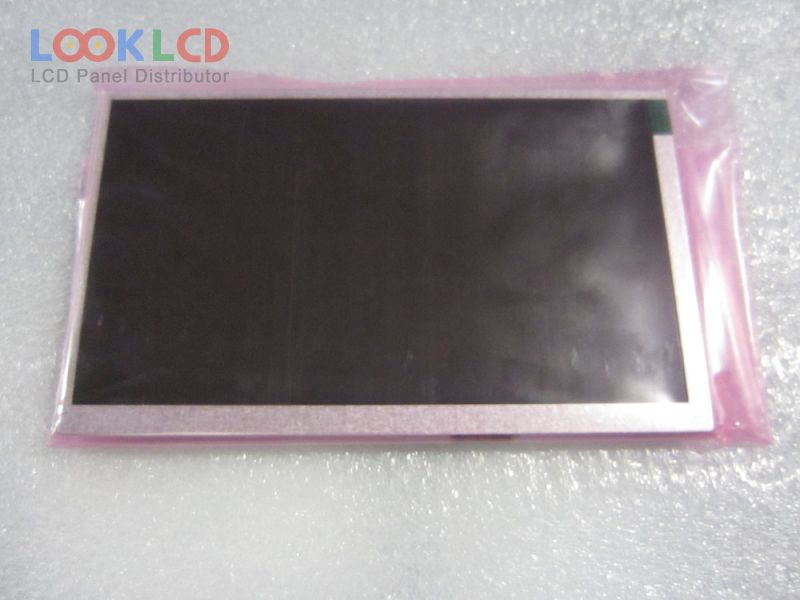

| PartZenbakia | A070FW03 V3 |
| Marka | AUO |
| Tamaina | 7.0 |
| Aplikazio | VDP |
| Ebazpena | 480×234 |
| Konposizioa | LCM |
| Distira | 300 |
| CR | 400:1 |
| Koloreak | |
| Atzeko argia | CCFL |
| Interfazea | Analog |
| panel marka | AUO |
| panel eredua | A070FW03 V3 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 480(RGB)×234 |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 154.08×86.58 mm |
| eskema | 164.9×100 mm |
| azalera | Antiglare (Haze 5.5%) |
| distira | 300 cd/m² (Typ.) |
| kontraste-erlazioa | 400:1 (Typ.) |
| bistaratzeko koloreak | |
| erantzun denbora | 12/18 (Typ.)(Tr/Td) |
| ikuspegi angelua | 55/55/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| lanpara mota | 1 pcsCCFLWithout Driver |
| seinale interfazea | TFT Specific Analog RGB, 26 pins |
| sarrerako tentsioa | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplikazio | VDP |
