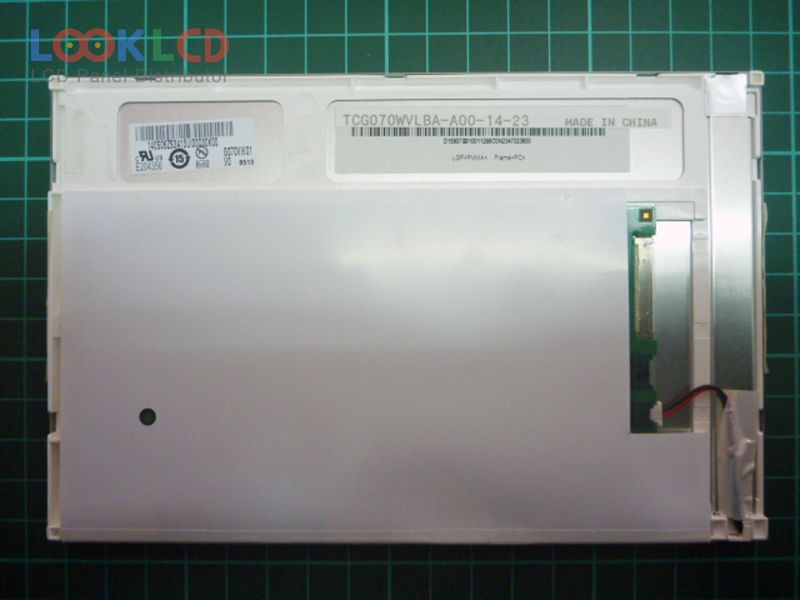

| PartZenbakia | TCG070WVLBA-A00 |
| Marka | Kyocera |
| Tamaina | 7.0 |
| Aplikazio | IA |
| Ebazpena | 800×480 |
| Konposizioa | LCM |
| Distira | 400 |
| CR | 1000:1 |
| Koloreak | 262K/16.2M |
| Atzeko argia | WLED |
| Interfazea | LVDS |
| panel marka | Kyocera |
| panel eredua | TCG070WVLBA-A00 |
| panel mota | a-Si TFT-LCD , LCM |
| panelaren tamaina | 7.0 inch |
| ebazpena | 800(RGB)×480 , WVGA |
| bistaratzeko modua | TN, Normally White, Transmissive |
| eremu aktiboa | 152.4×91.44 mm |
| eskema | 170×111 mm |
| azalera | Antiglare, Hard coating (3H) |
| distira | 400 cd/m² (Typ.) |
| kontraste-erlazioa | 1000:1 (Typ.) |
| bistaratzeko koloreak | 262K/16.2M (6-bit / 6-bit + FRC), CIE193160% |
| erantzun denbora | 20/10 (Typ.)(Tr/Td) |
| ikuspegi angelua | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| maiztasuna | 60Hz |
| lanpara mota | WLEDEmbedded (LED Driver) |
| seinale interfazea | LVDS (1 ch, 6/8-bit), 20 pins |
| sarrerako tentsioa | 3.3V (Typ.) |
| aplikazio | IA |
